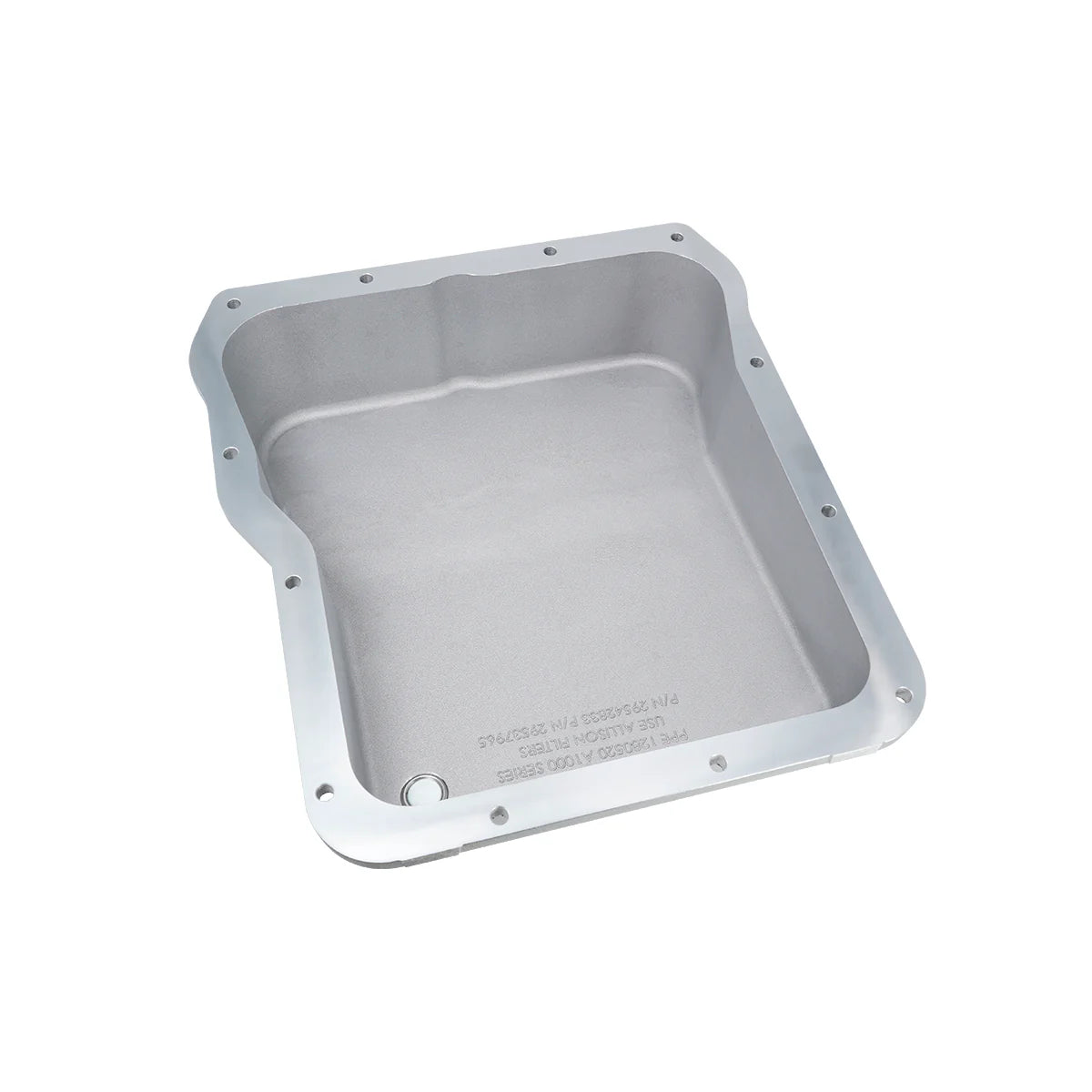

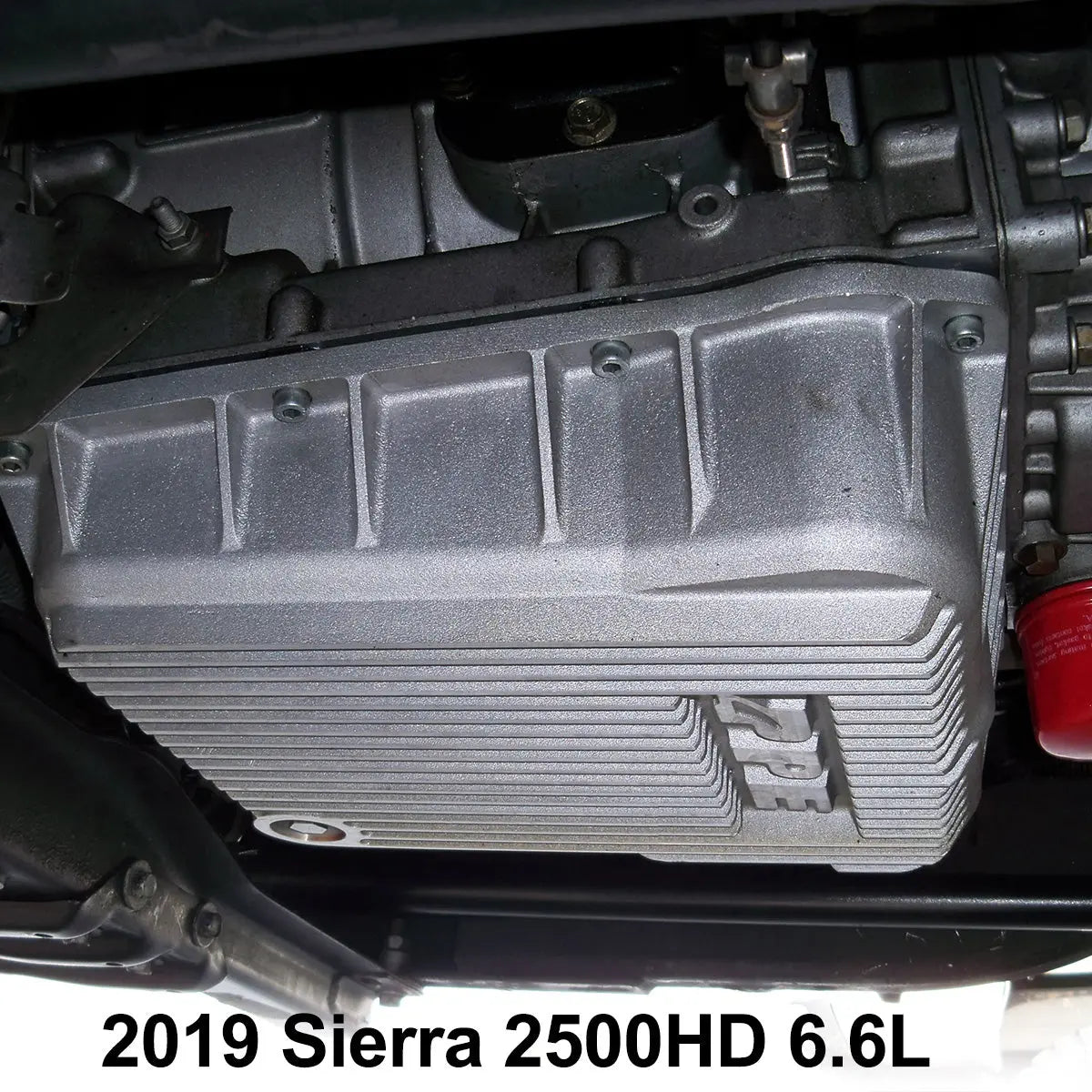

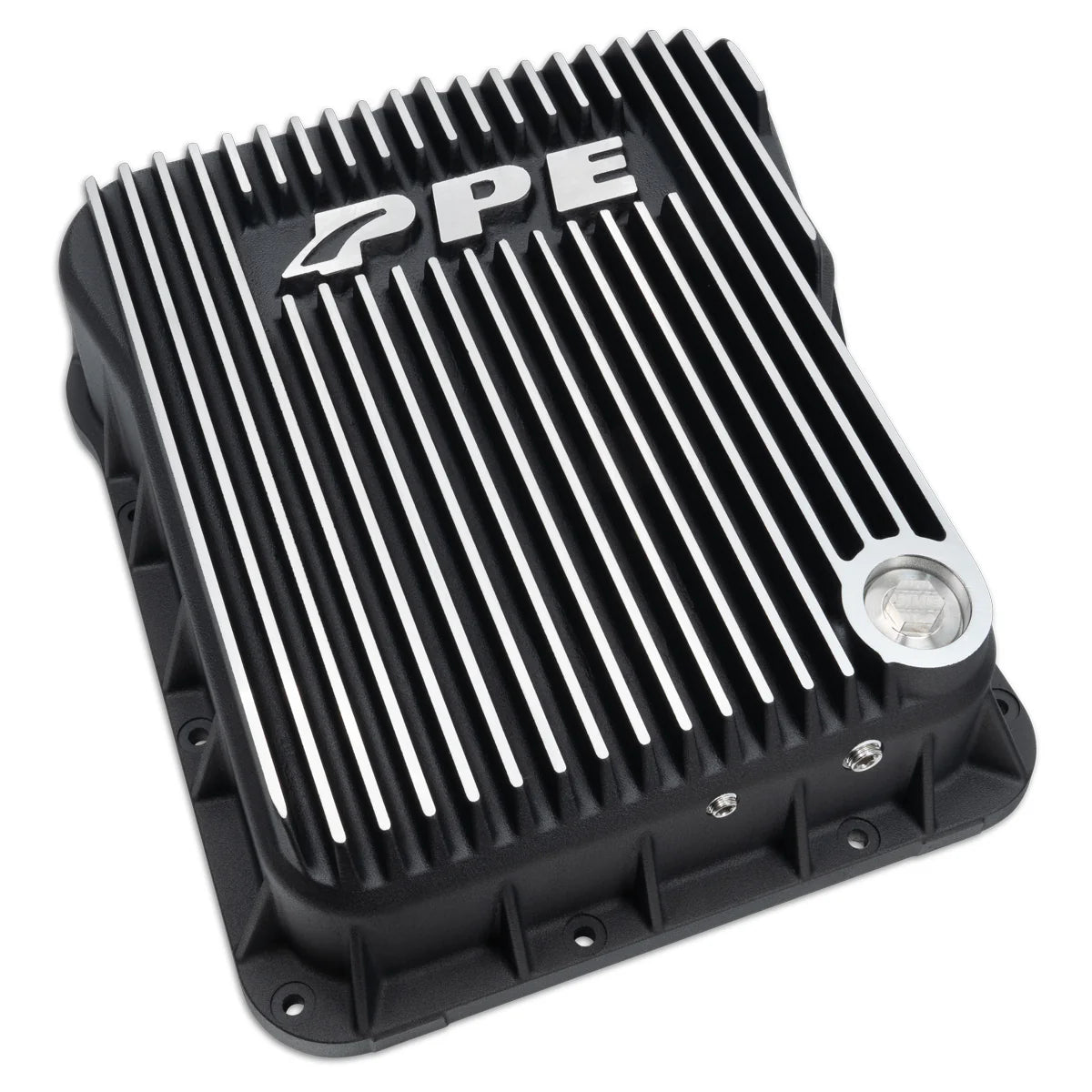

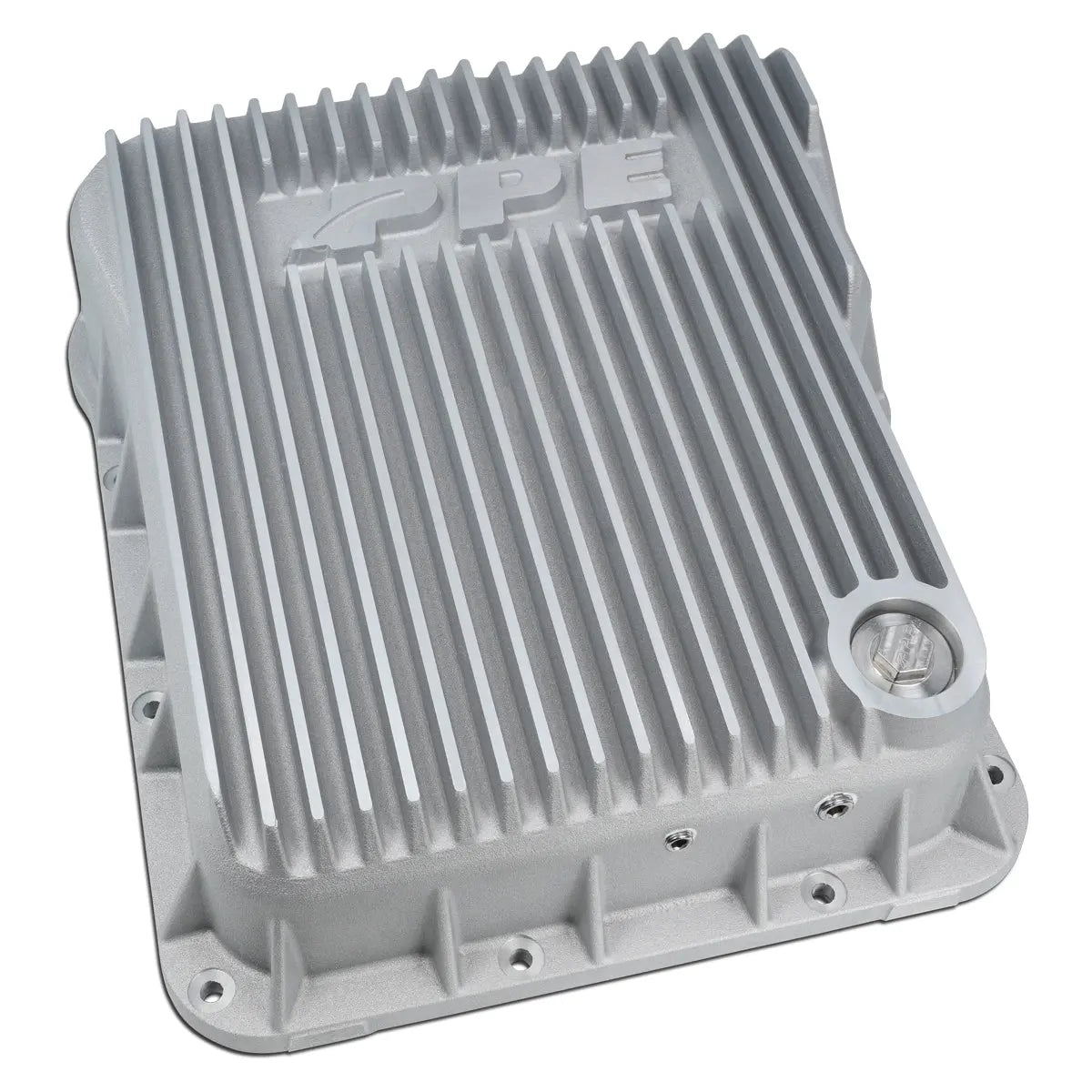

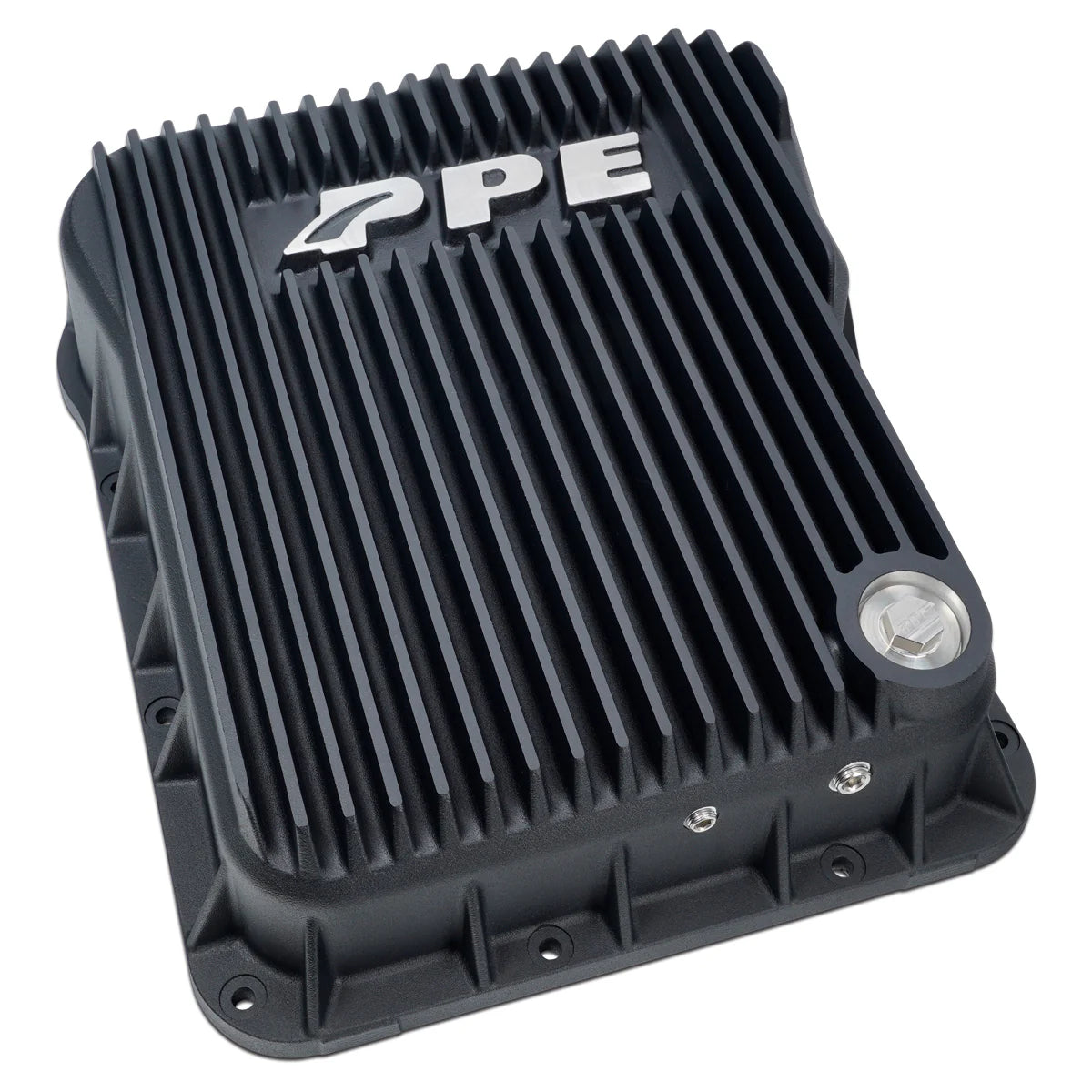

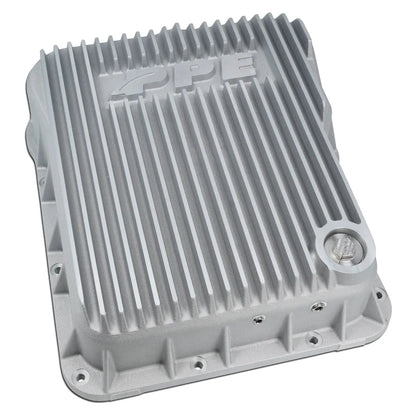

Heavy-Duty Cast Aluminum Transmission Pan, GM 6.6L Duramax
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.
The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Keep your Allison transmission running longer, healthier, and cooler with PPE.
OEM Part Number for Reference: GM part # 24233099
Features
- Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
- Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
- Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
- Cast-in gussets for additional transmission housing flange support and increased rigidity
- 304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
- Equipped with 1/8-inch and 1/4-inch NPT ports with pre-installed NPT plugs
