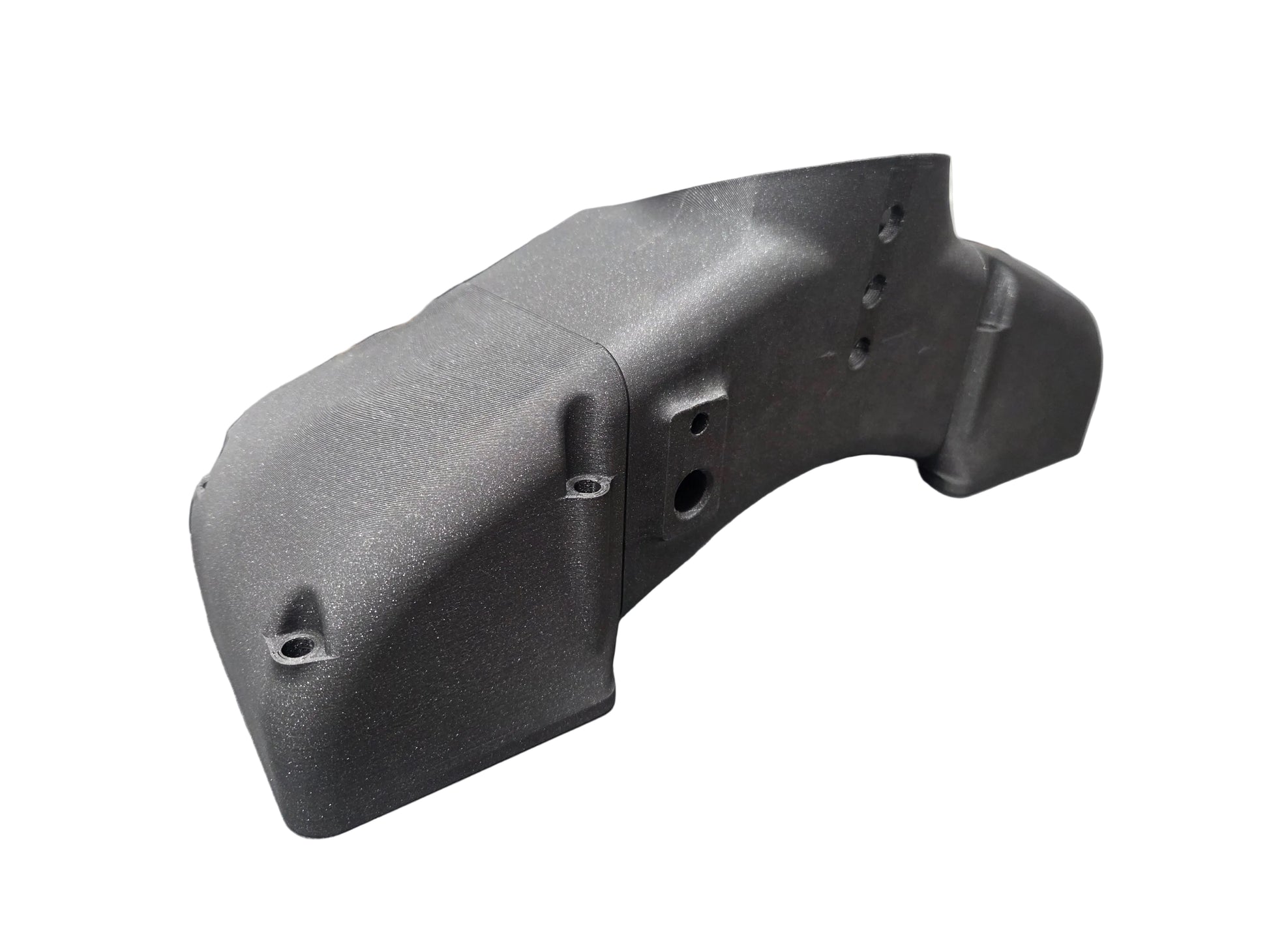

DP Customs L5P Duramax 3.5" Billet Intake Bridge

ETA 9-25

The DP Customs L5P Duramax 3.5" Billet Intake Bridge combines clean styling, fabrication flexibility, and easy serviceability into one purpose-built design.

Outlet Style

The DP Customs L5P Duramax 3.5" Billet Intake Bridge is available with two neck inlet configurations to fit the way you want to build your setup. Choose our blank 3.5" inlet for maximum fabrication flexibility, or select the welded dual-seal vanjen flange for a ready-to-build connection.

3.5" Blank Neck

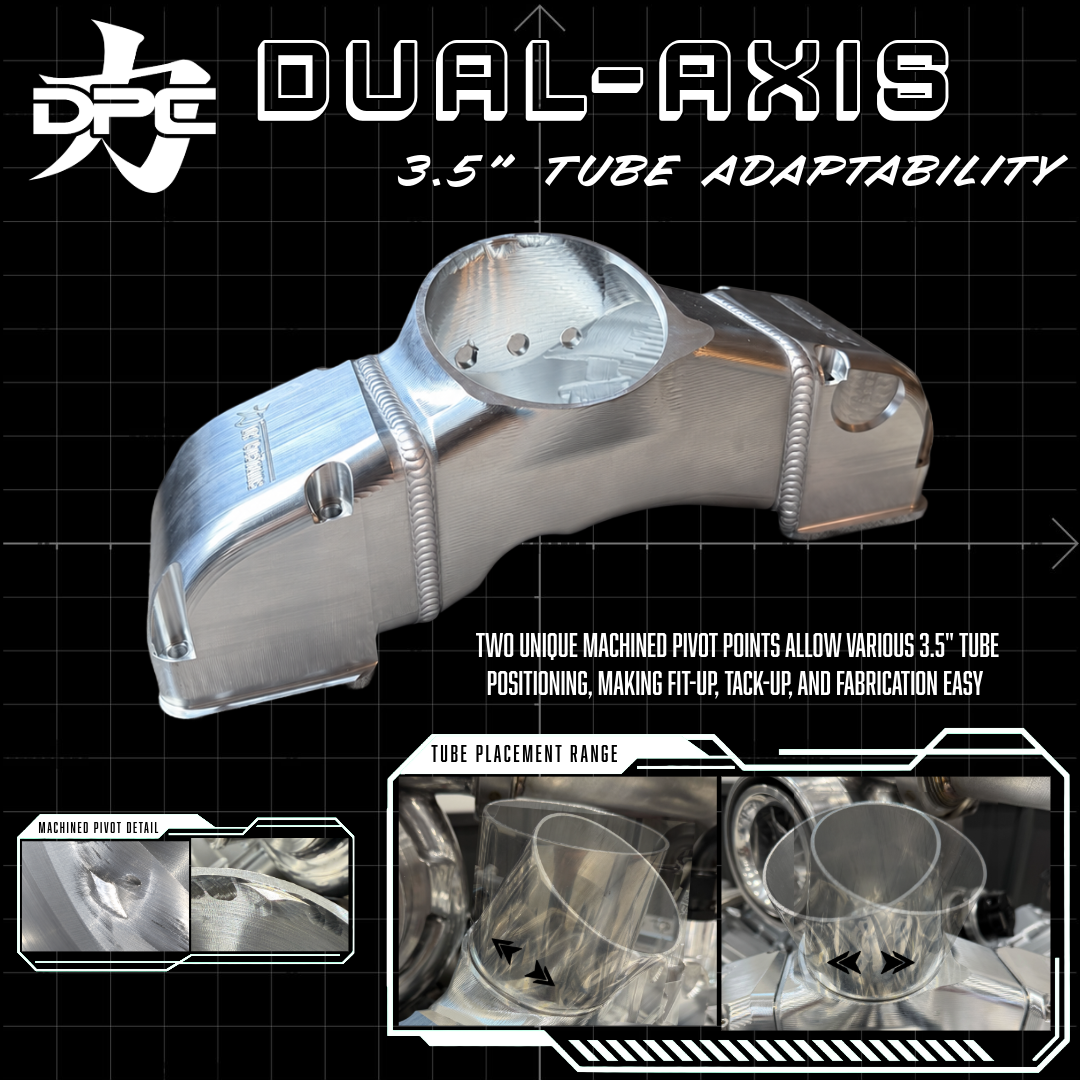

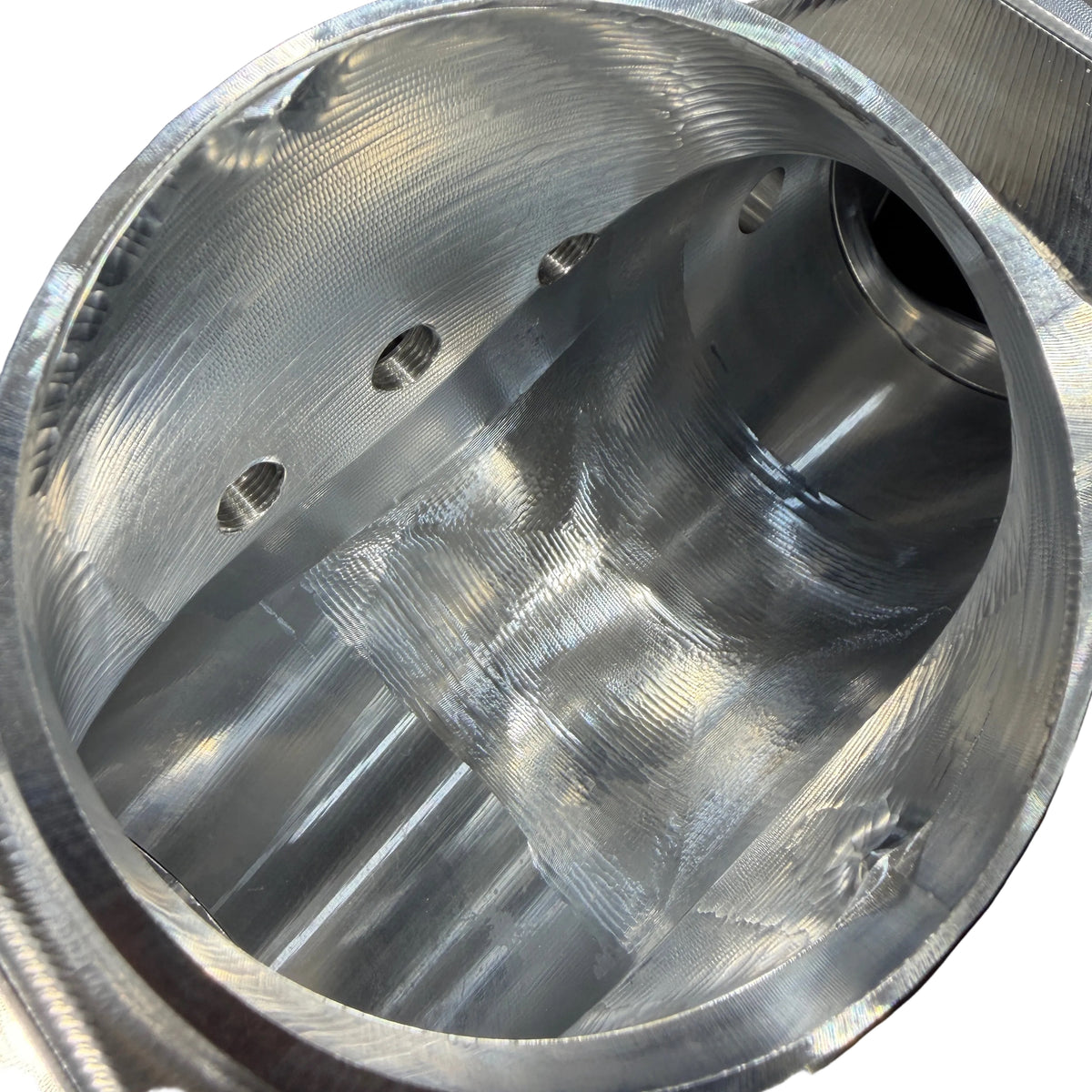

Featuring our Dual Axis Pivot System, our billet bridge allows 3.5" tube to be angled and welded in any direction into the neck. V Band, Vanjen, or Directly Welded Tube style connections can all be utilized here.

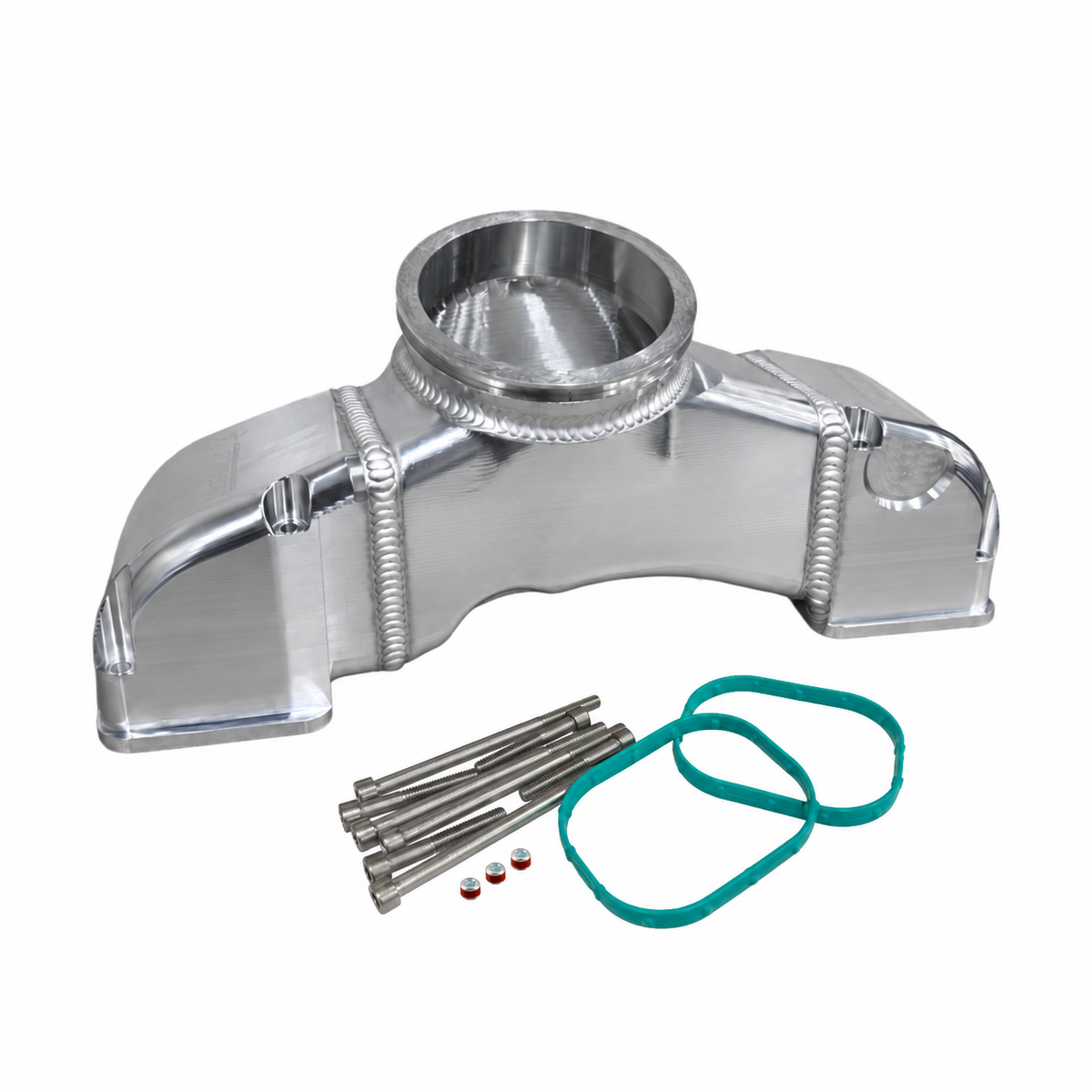

3.5" Dual Seal Vanjen Connection

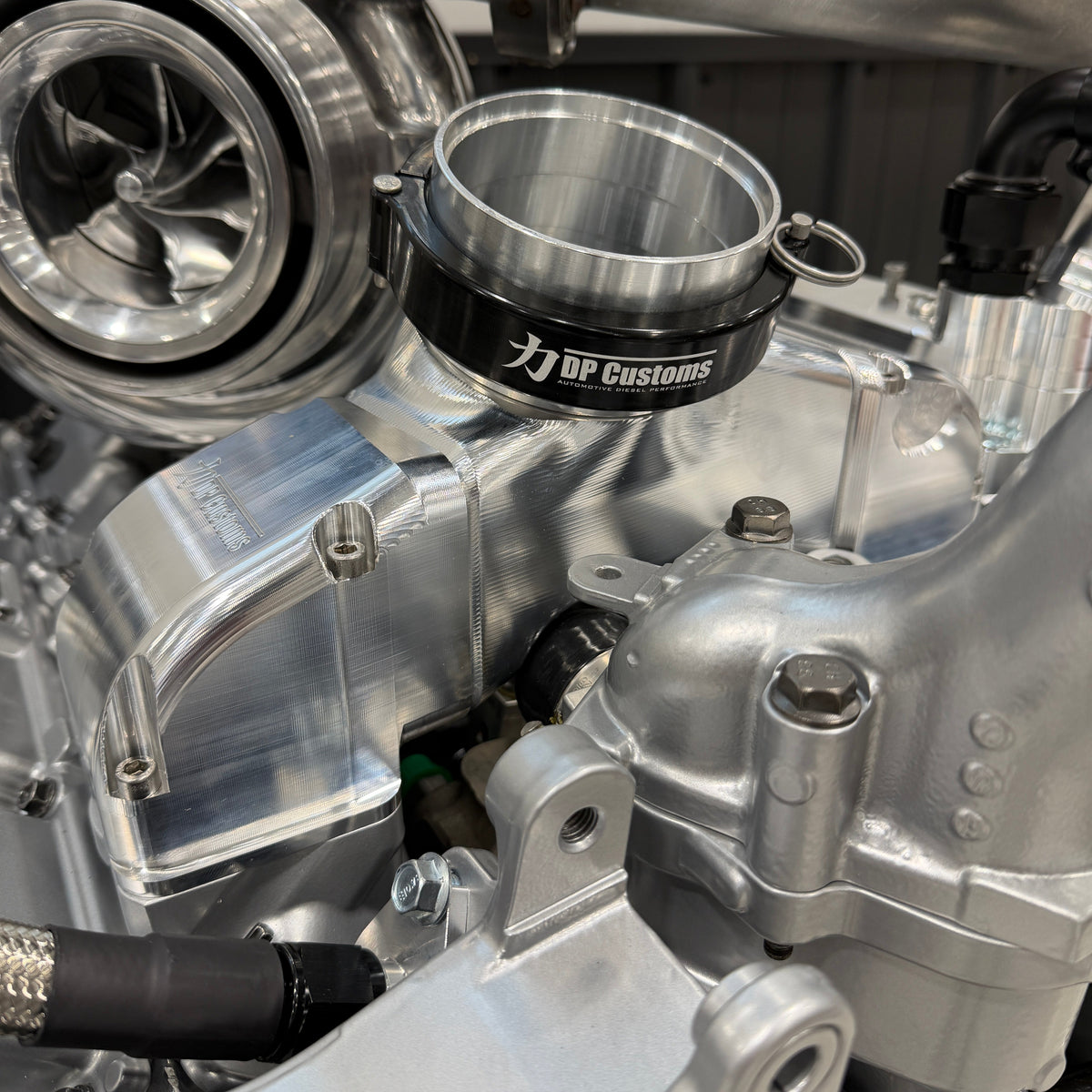

Start fabrication work off right with our dual seal connector which accepts 3.5" tubing and features a quick release pull pin and anodized black aluminum construction. These clamps are rated for 300+ PSI and allow flexibility. Each vanjen flange welded bridge is pressure checked @50 PSI to ensure a perfect boost leak free set up.

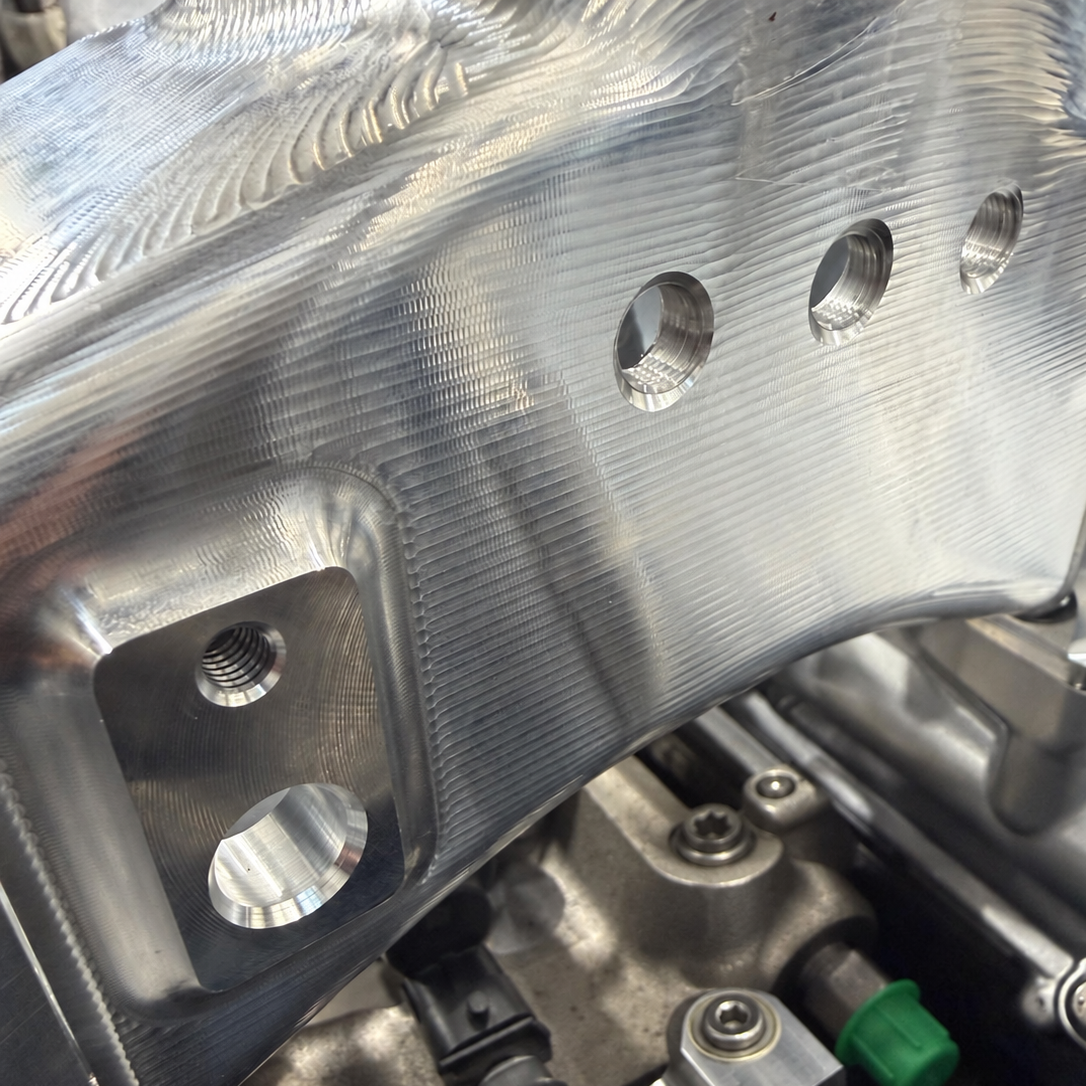

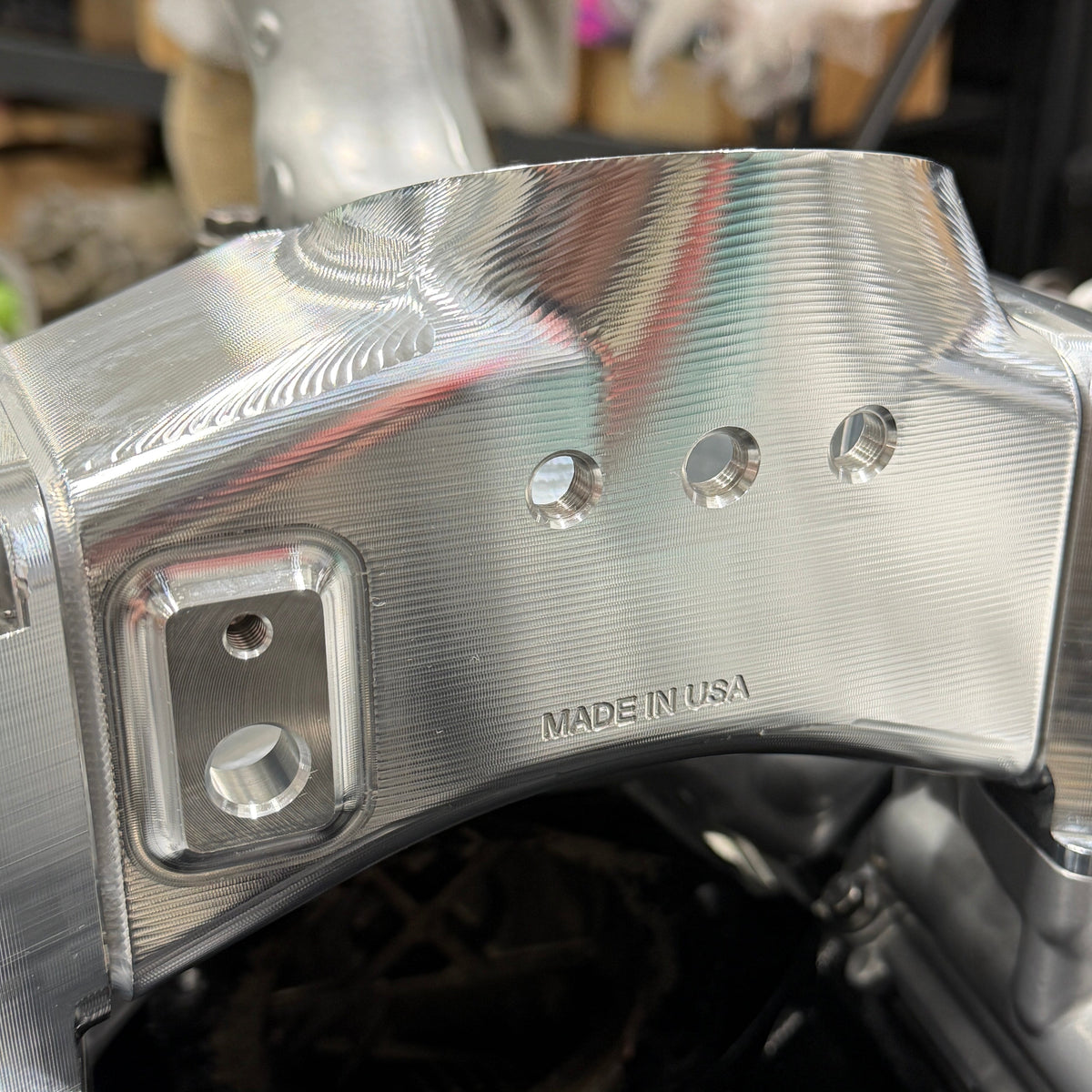

Installation & removal of our bridge takes only minutes thanks to the thoughtfully placed stainless allen fasteners. Three 1/8 NPT ports for boost gauges, boost reference lines, or nitrous nozzles are located in the rear center of the bridge. The factory map sensor mounts hidden on the backside of the bridge using the stock hardware. Whether you're building a street truck, competition setup, or completely custom intake system, the DP Customs L5P Duramax Billet Intake Bridge gives you a clean, versatile foundation to start your fabrication project the right way.

Features

• MADE IN THE USA
• 3x 1/8 NPT Ports

• High Flowing Open Design
• Billet Aluminum Construction
• Easy Accessible Mounting Bolts
• Factory MAP Sensor Provision
• Adaptable 3.5" Tube Pivot
• Optional Blank or Vanjen Inlet


Includes

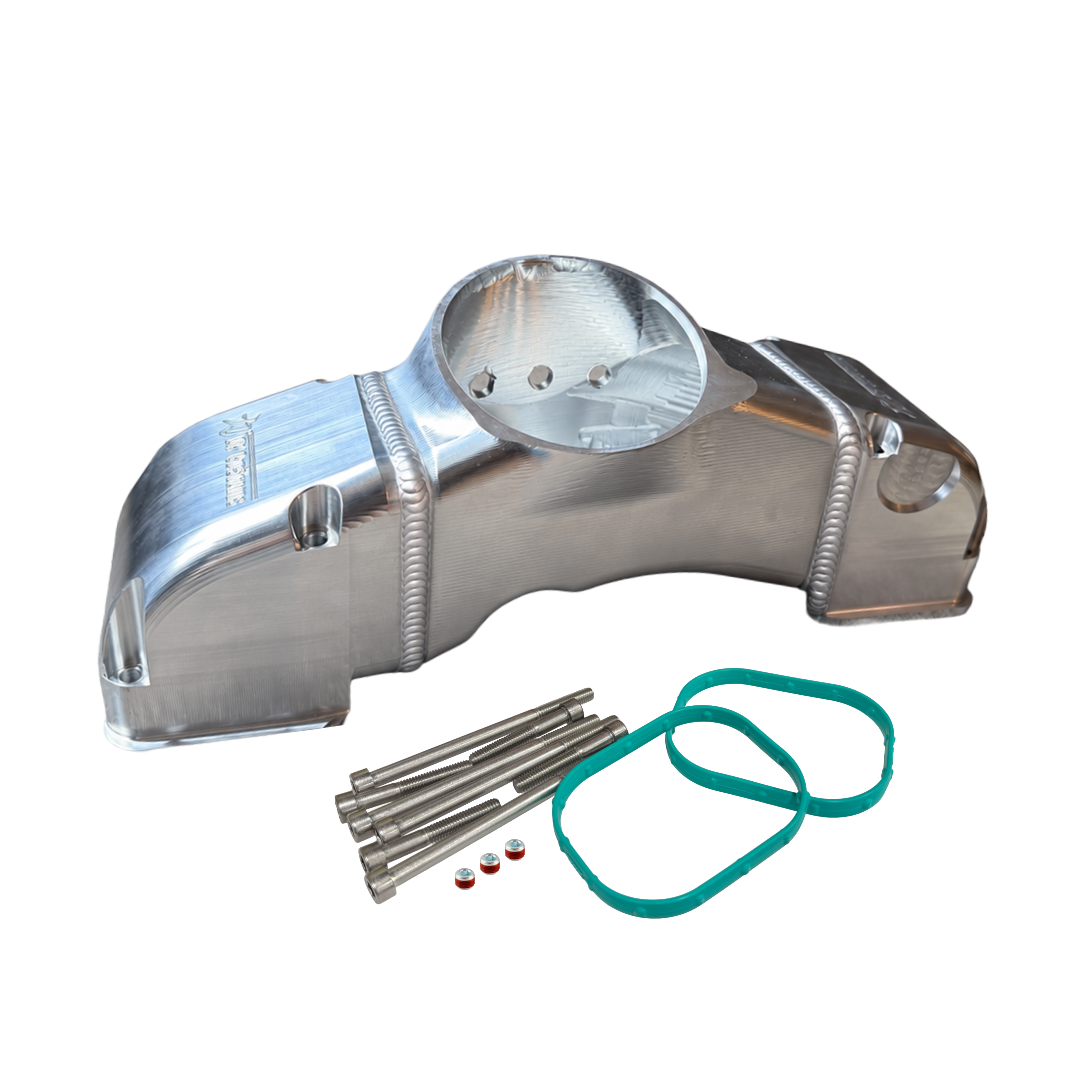

• Billet Intake Bridge
• 2x GM Bridge Gaskets

• 3x Stainless 1/8 NPT Plugs
• Stainless Mounting Allen Hardware


Vanjen Option Includes DPC Dual Seal Vanjen Assembly

Fitment

2017-2027 L5P Duramax

WILL NOT SHIP TO THE STATE OF CALIFORNIA

*This product is intended for race/offroad use only, use of vehicle with product installed on public road/highway is STRICTLY FORBIDDEN. DP Customs is not liable if product is used in noncompliant manner*
