After the success of the popular "Billet T4 Wastegate Pedestal" with having ZERO failures to date, we decided to create something just as tough but that will support larger frame turbochargers capable of making hundreds of more efficient hp.

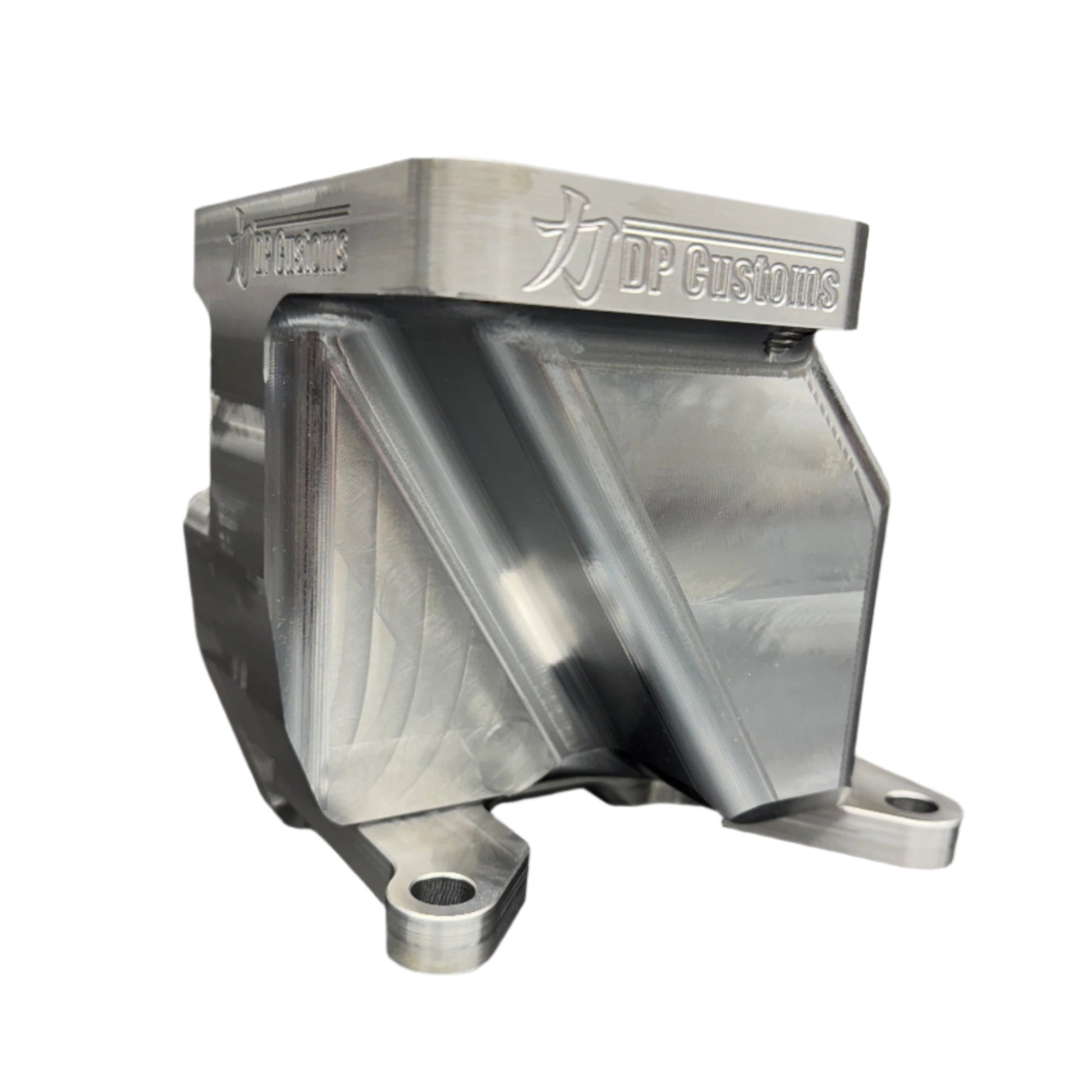

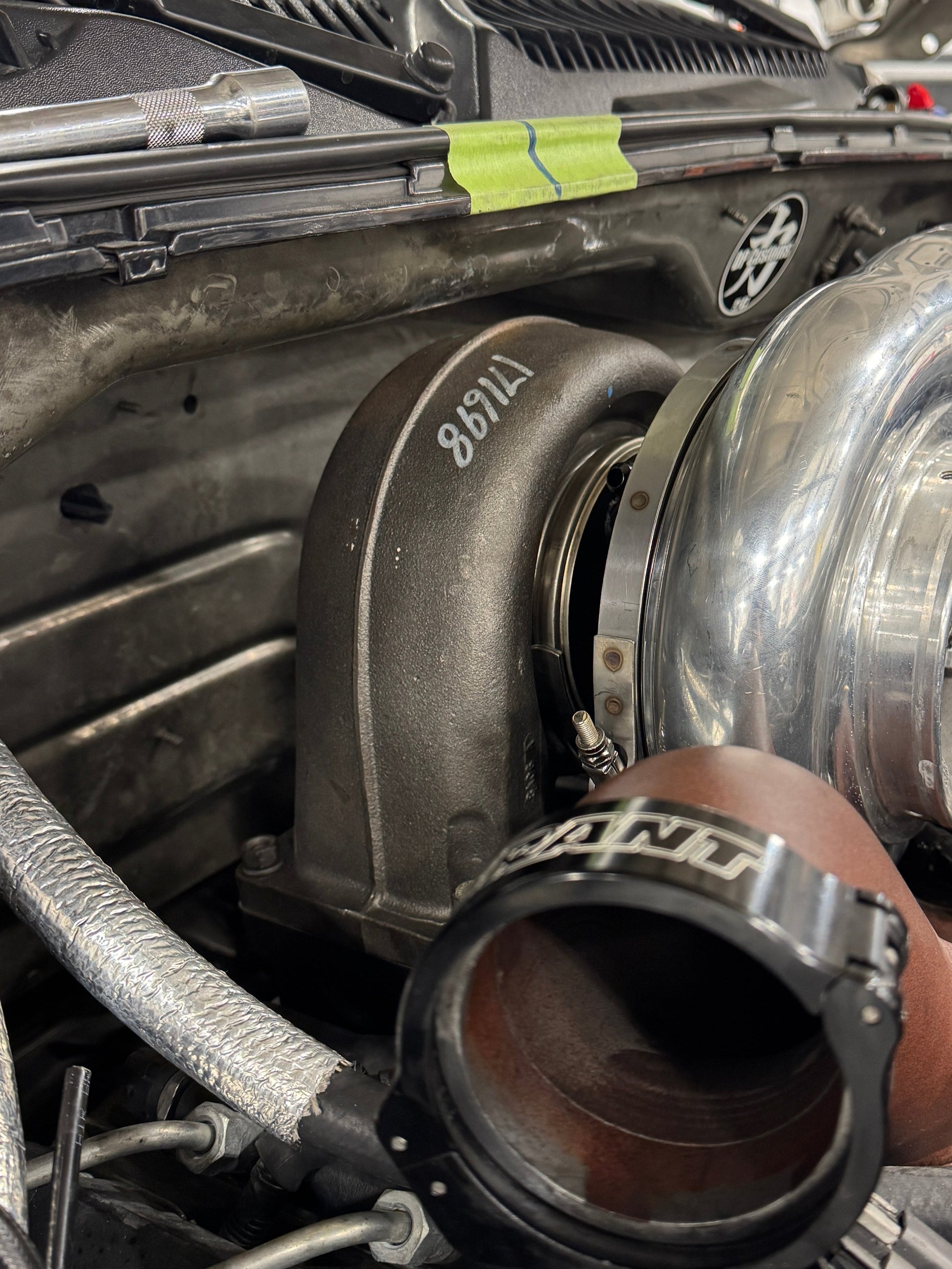

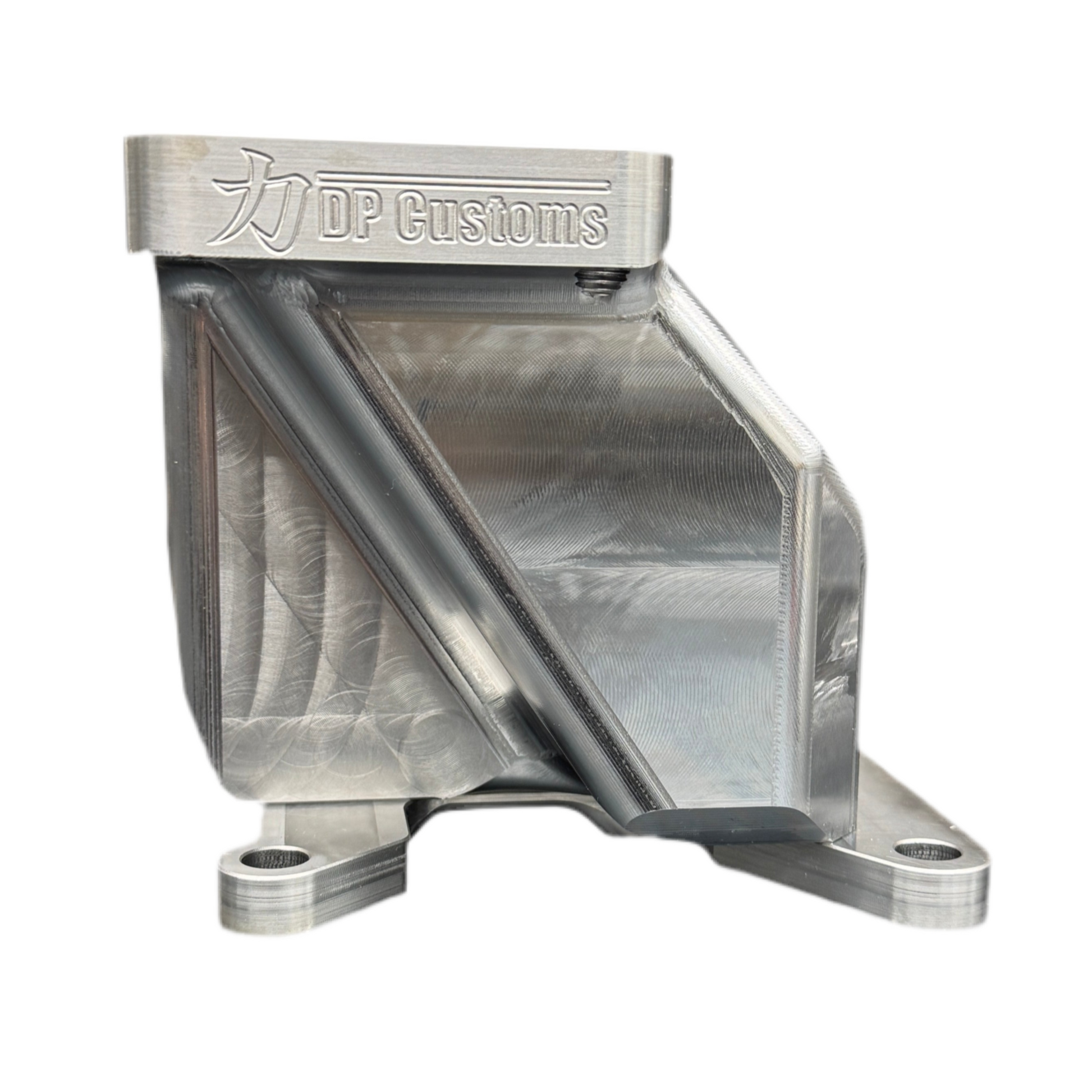

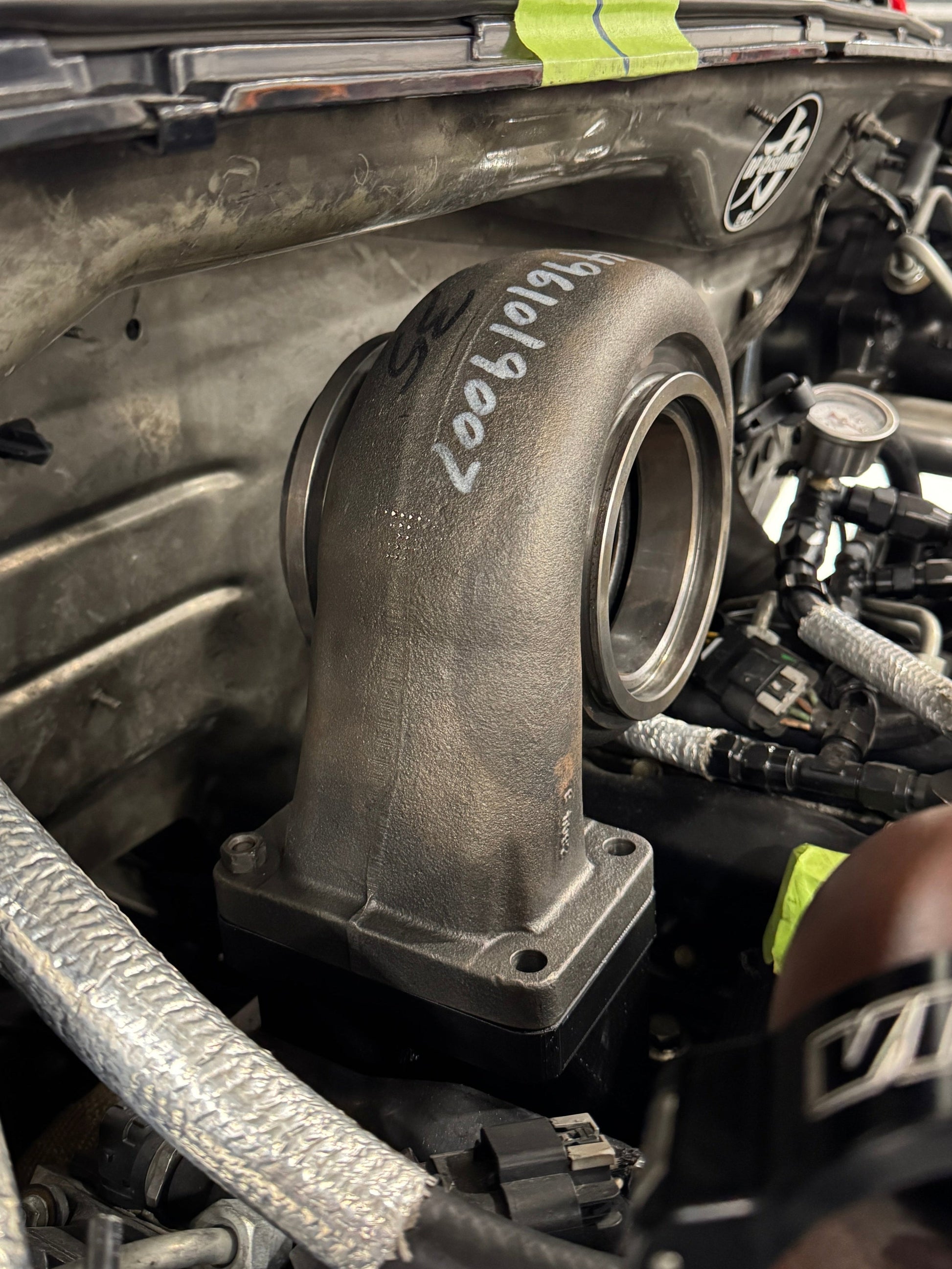

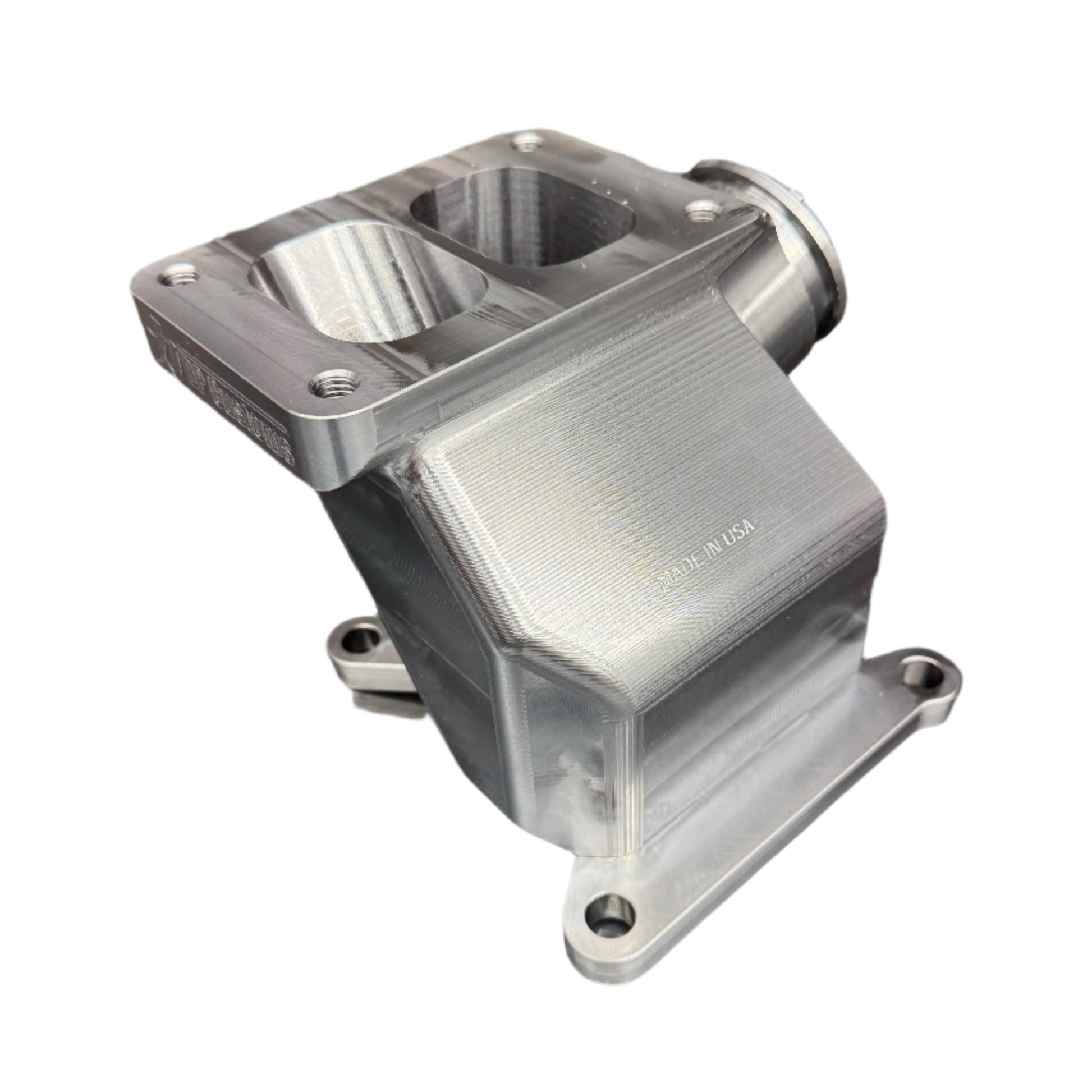

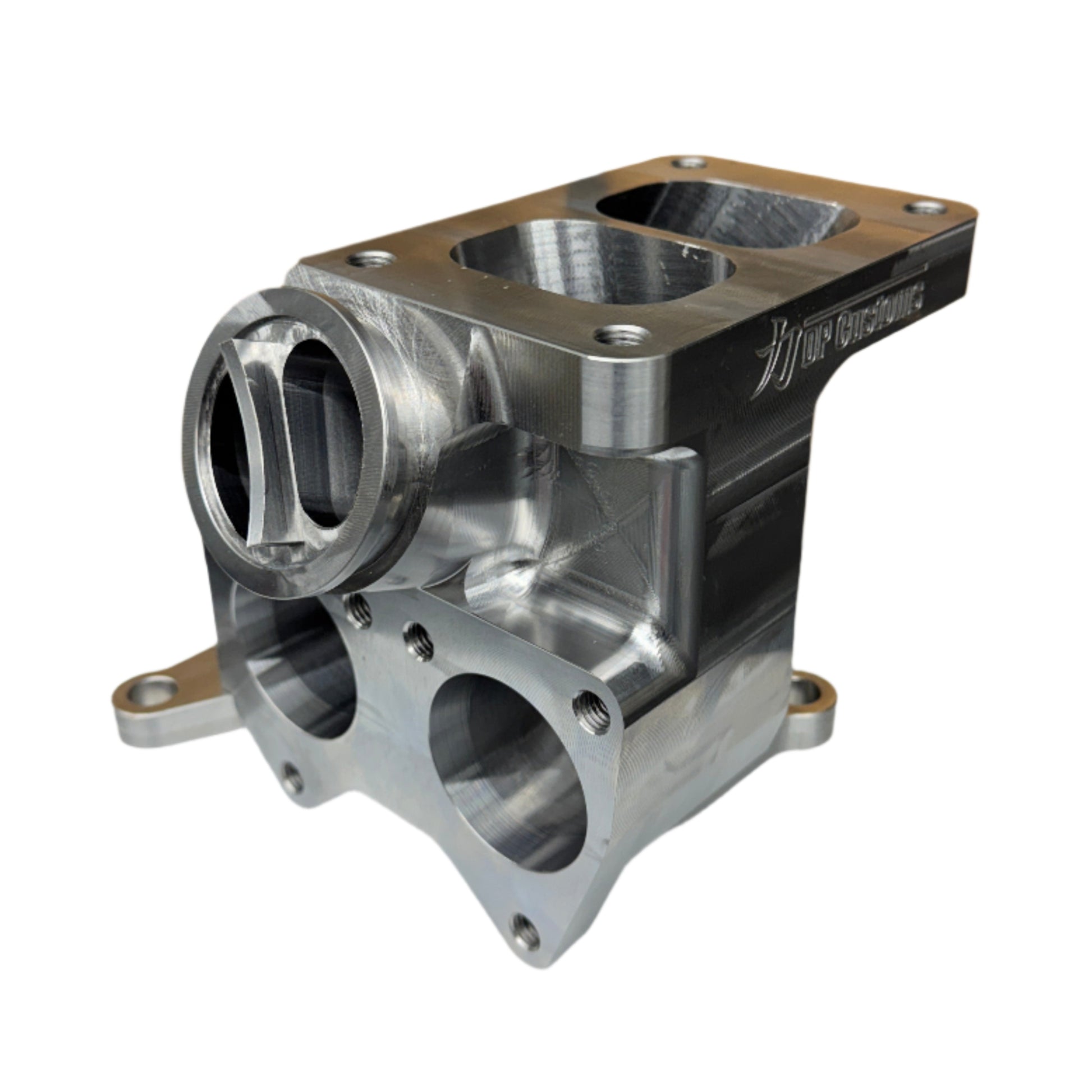

Introducing the WORLDS FIRST Duramax Billet T6 Wastegate Provisioned Pedestal by DP Customs. After months of engineering, we came up with a pedestal that covered every problem seen with competitors. No more cracking, no more clearance issues and easier wastegate plumbing to name a few! Your 45mm Turbosmart Hypergate Wastegate will clear the firewall and put the discharge opening in a perfect spot for dumping into the atmosphere through the hood or into your exhaust through the downpipe. If you do not run a wastegate, simply cap the provision off (caps sold separately) and enjoy a QUALITY Billet T6 Pedestal. With an easily removable base, this pedestal can also be adapted to use on L5P Duramax blocks (L5P base sold seperate).
Features:

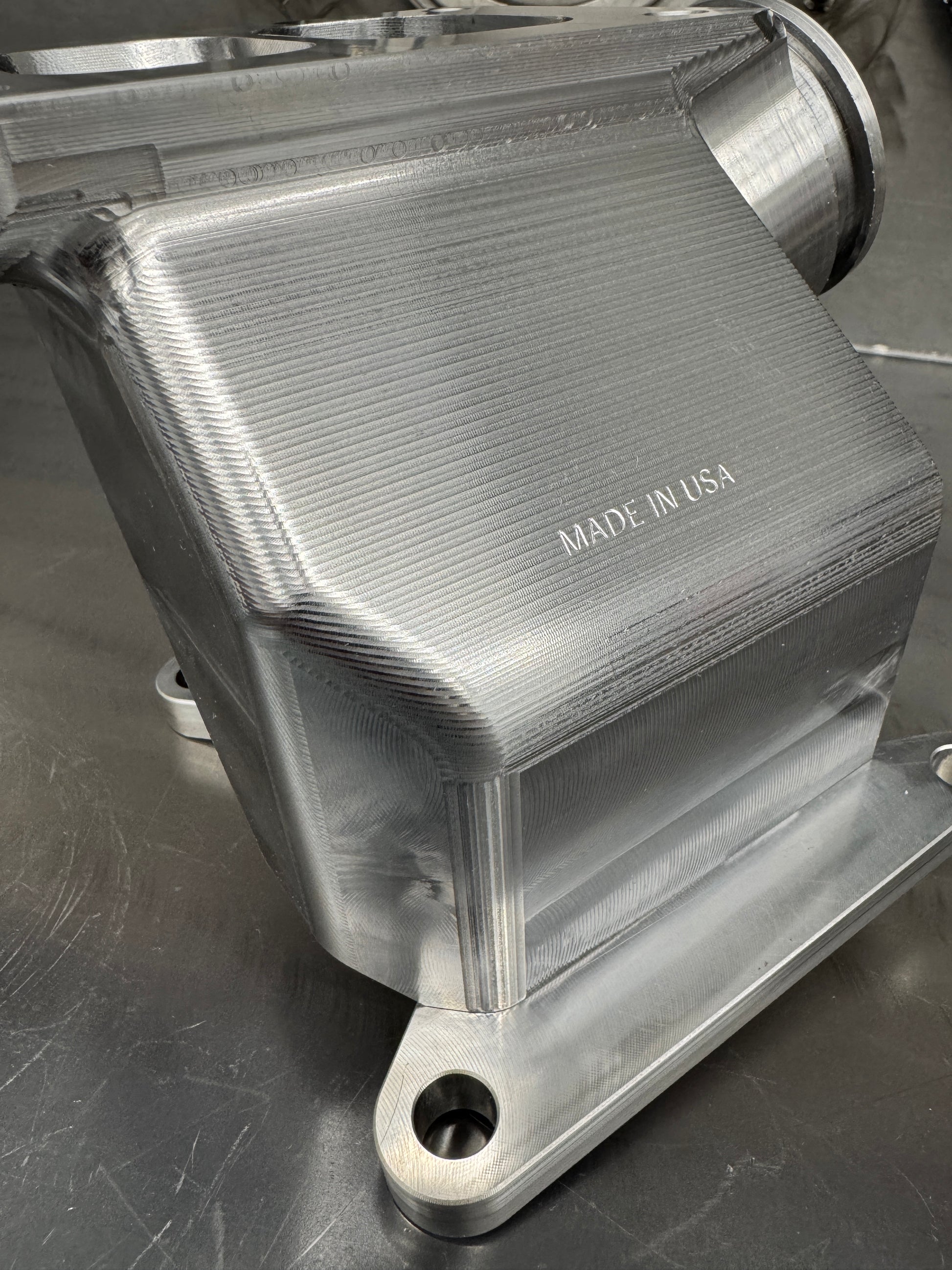

- MADE IN THE USA
- Lifetime Warranty
- 5 Axis Billet Machined
- Removable and adaptable base for fitment and use with the L5P Duramax block (sold separately)
- 5.5” Height
- 1/2” Thick Mounting Base
- Heavy Duty Exhaust Channel Walls

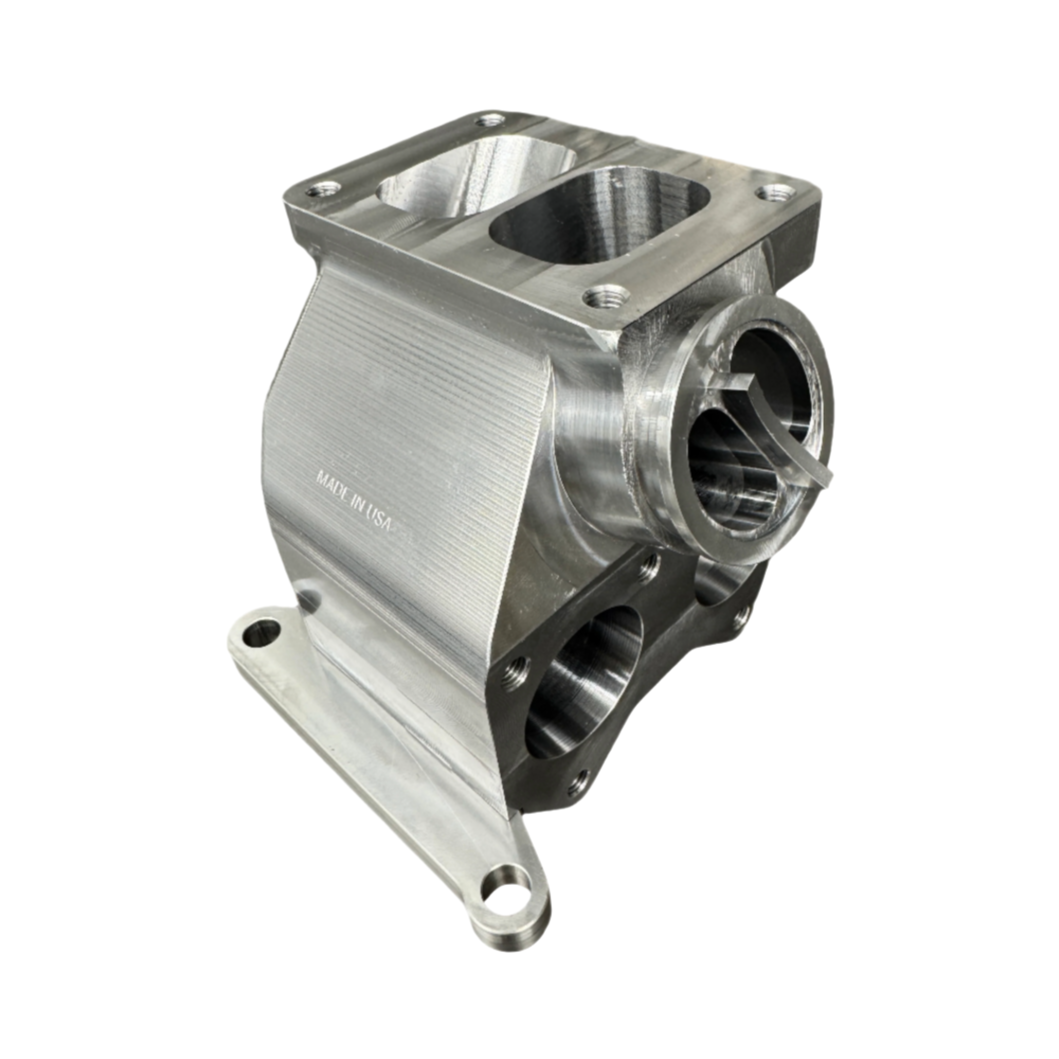

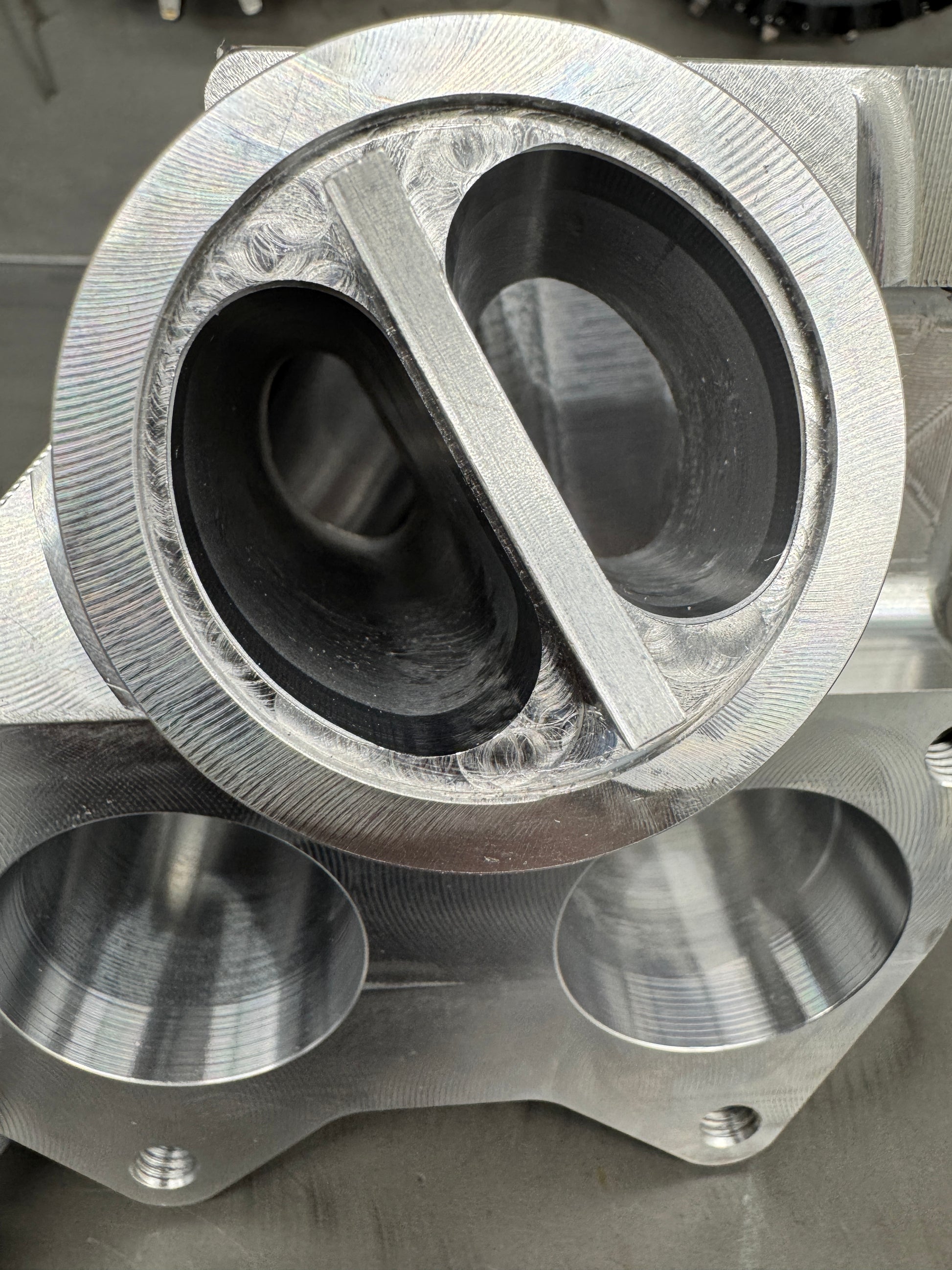

- 45mm Hypergate Wastegate Provision Flange

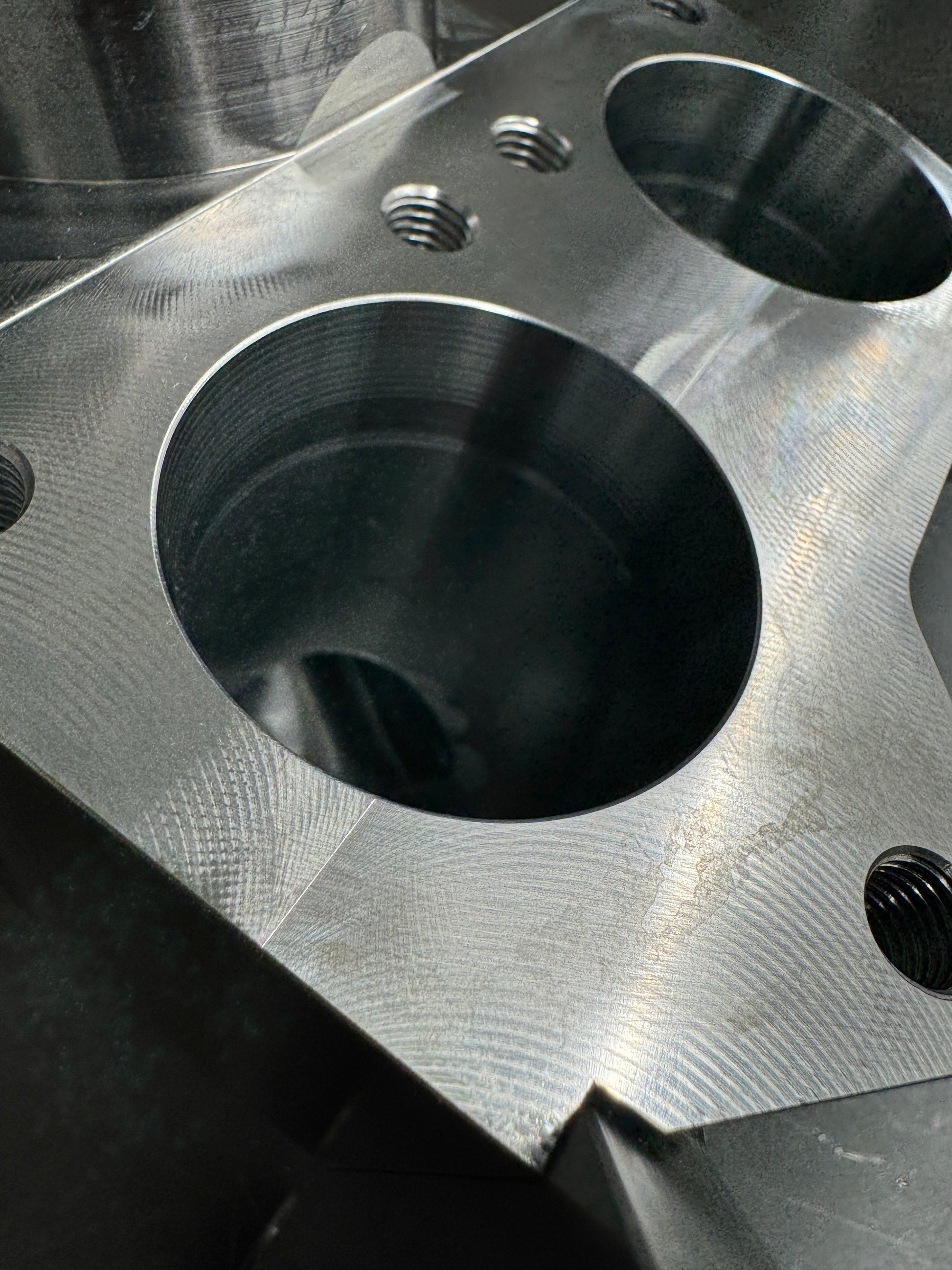

- 3/4” T6 Flange
- -12AN turbo oil drain clearance
- M10x1.5 Thread

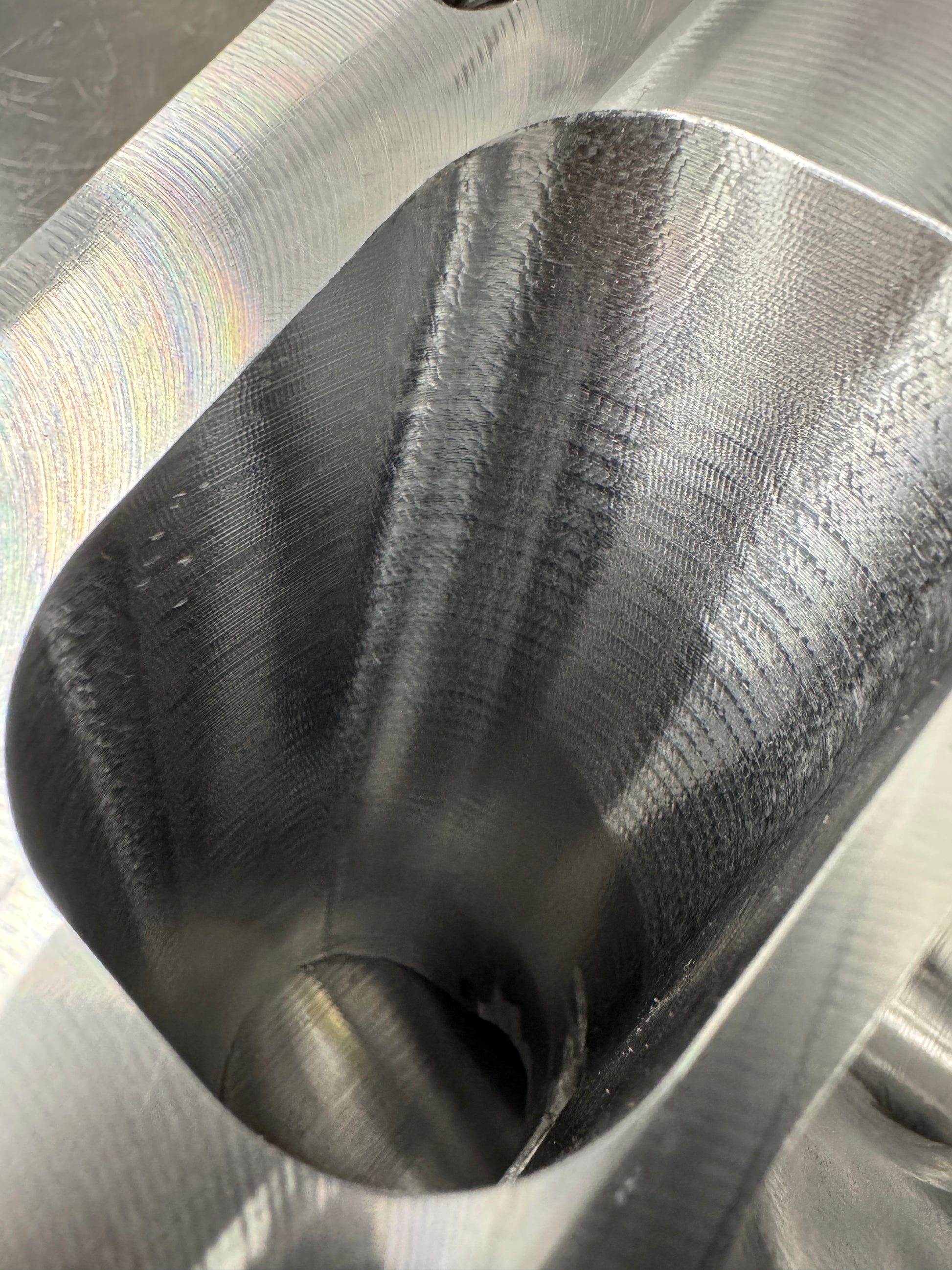

- High Flowing Internal Design
- LB7 Intake Runner Clearance

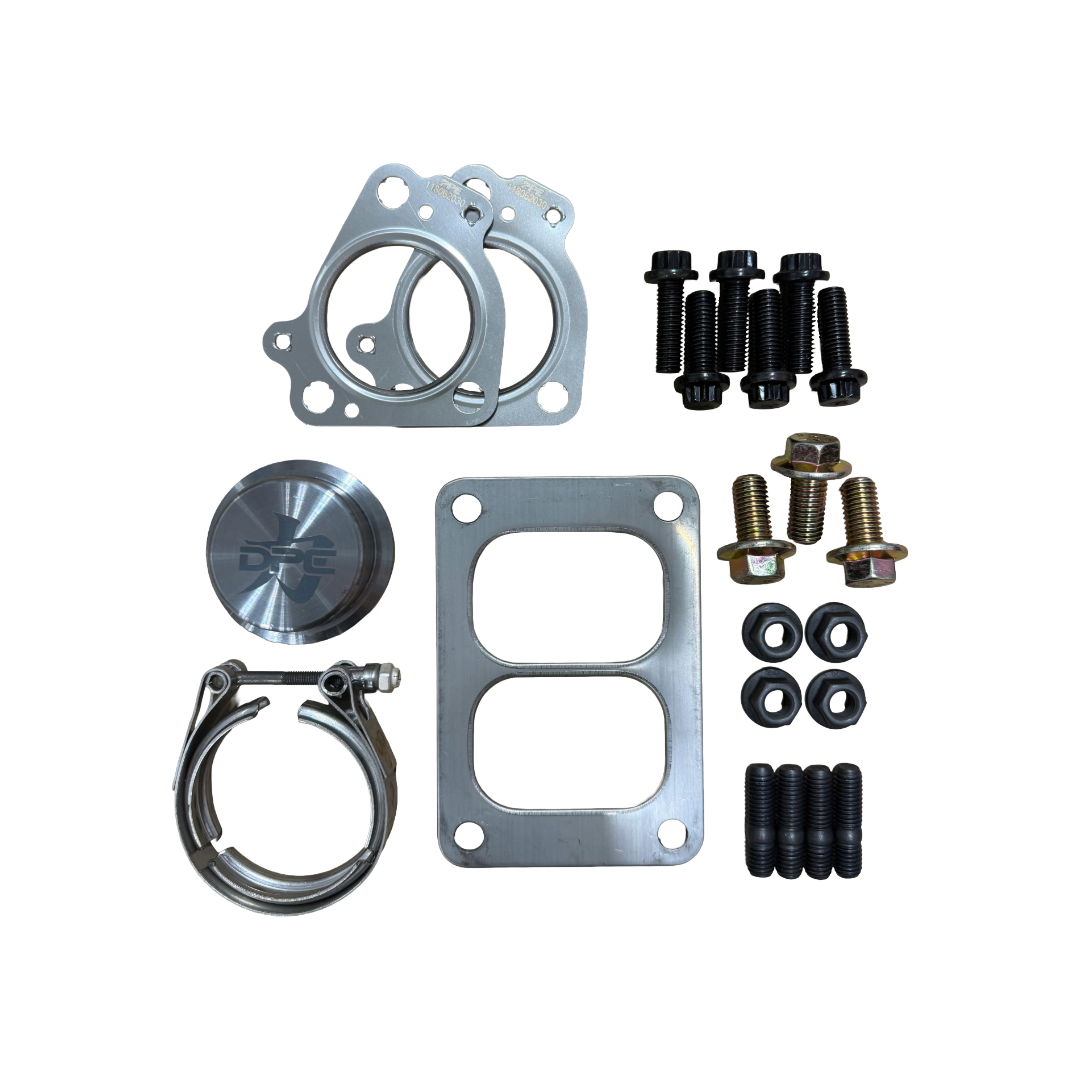

Install Kit:

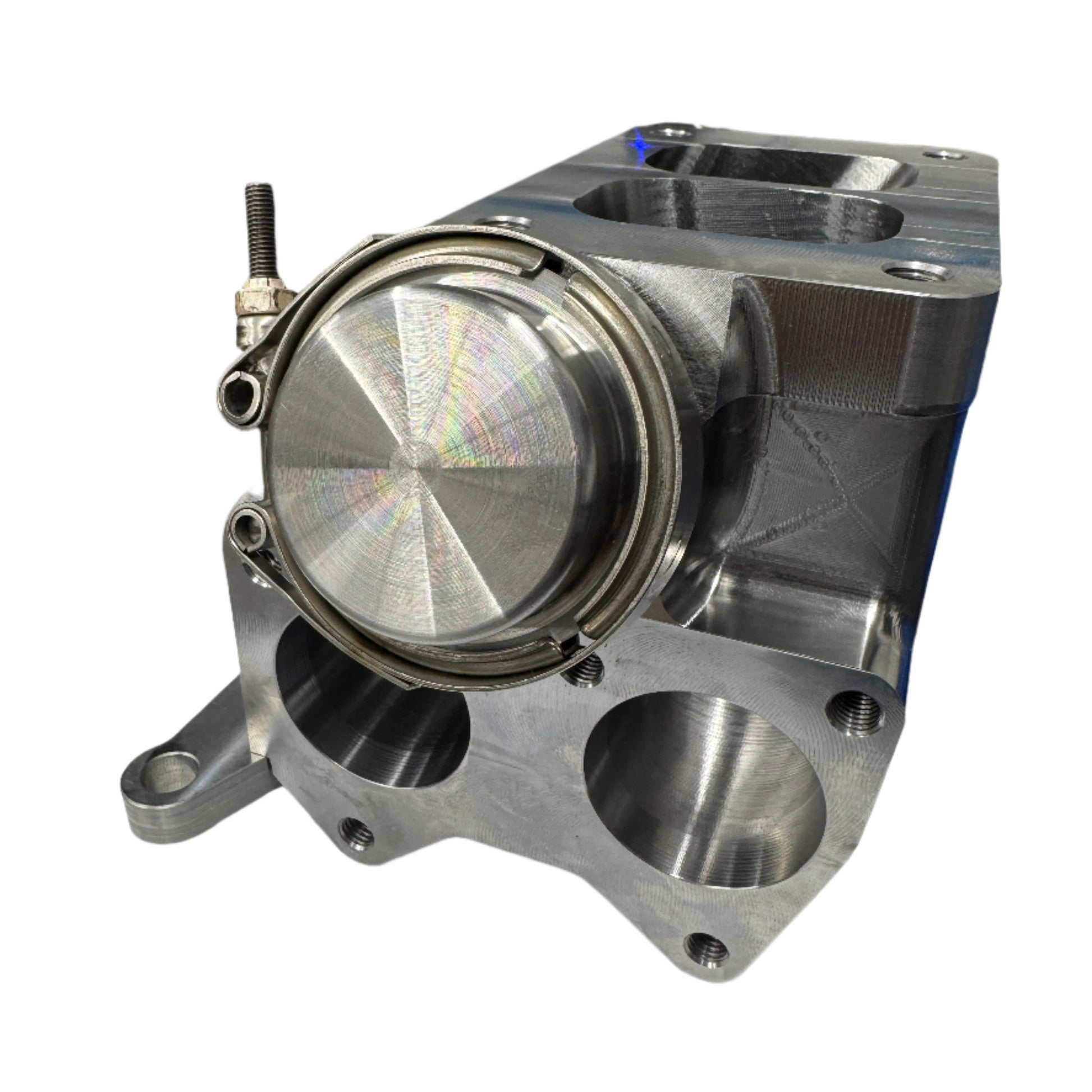

All gaskets/hardware needed to install the DP Customs Billet T6 Wastegate Pedestal. This kit also includes a billet wastegate provision plug if you are not using a wastegate.
- Borg Warner T4 Gasket
- M10x1.5 Studs/Nuts
- Turbosmart 44/45mm Clamp
- UpPipe Gaskets
- Pedestal/Block Bolts
Fitment:
2001-2023 LB7 LLY LBZ LMM LML L5P Duramax
Wastegate Fitment:
Turbosmart Hypergate 44/45mm Wastegate
Highest HP Using Pedestal:
TACK WELD OR STAKE BASE ALLEN BOLTS TO PREVENT FROM BACKING OUT
WILL NOT SHIP TO THE STATE OF CALIFORNIA
*This product is intended for race/offroad use only, use of vehicle with product installed on public road/highway is STRICTLY FORBIDDEN. DP Customs is not liable if product is used in non compliant manner*
