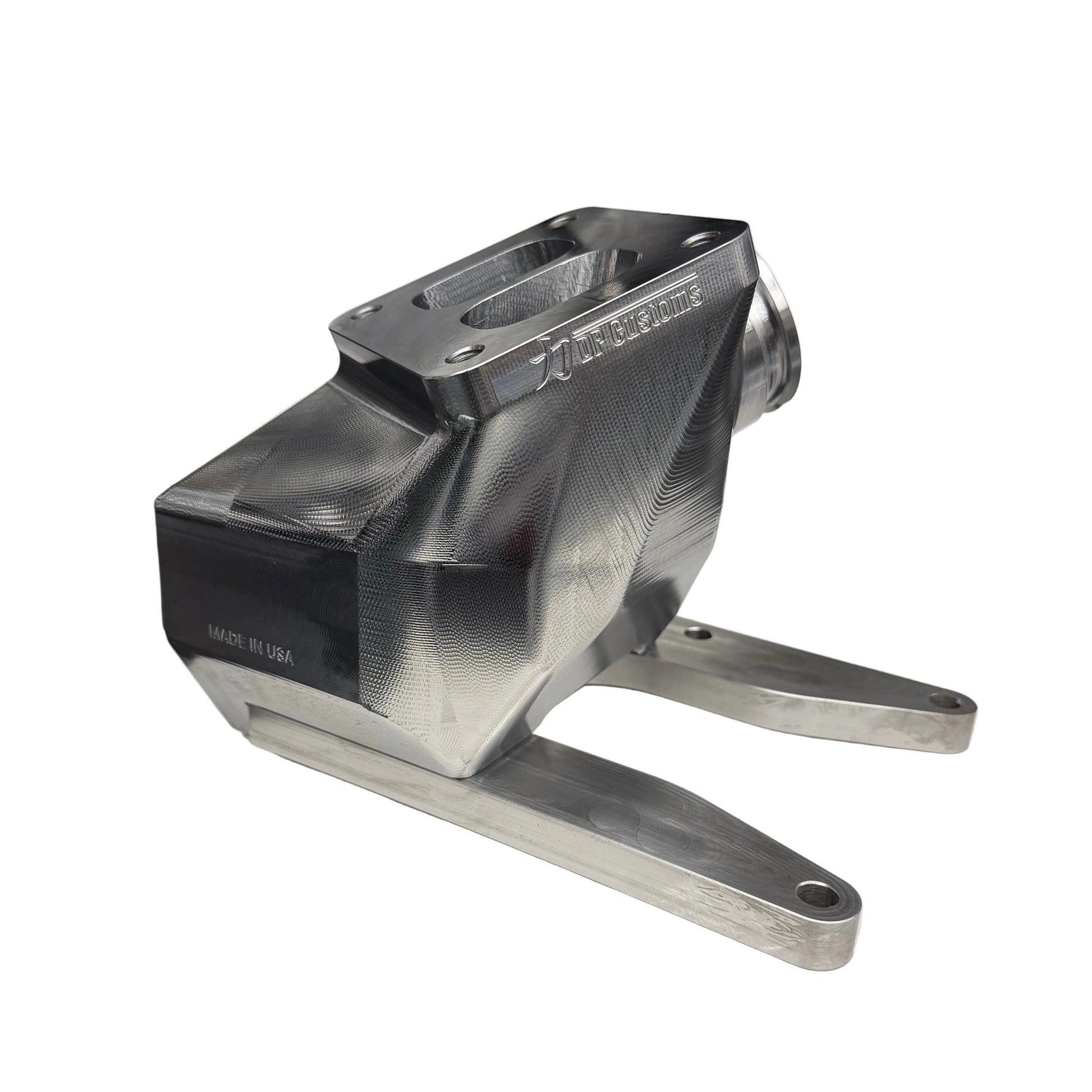

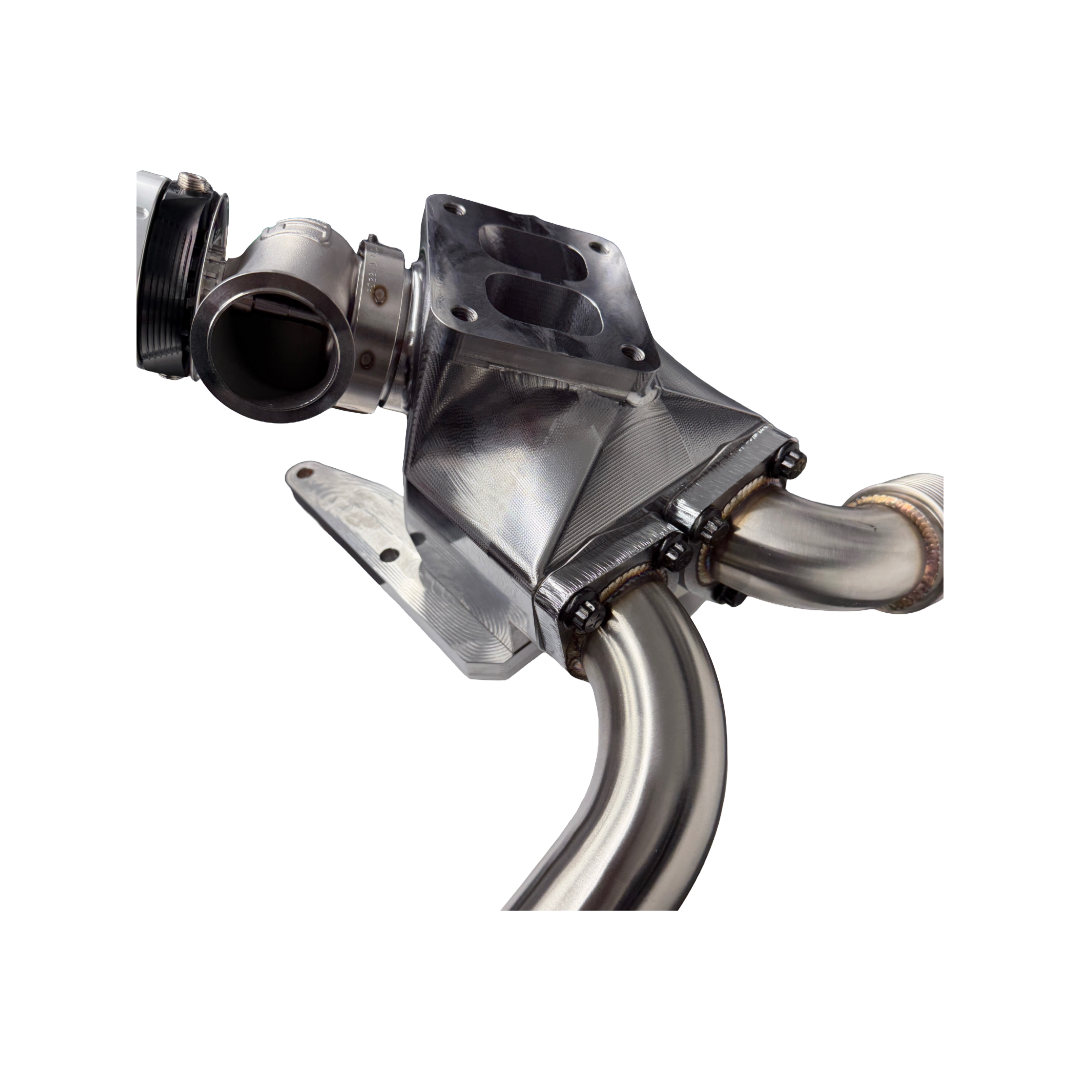

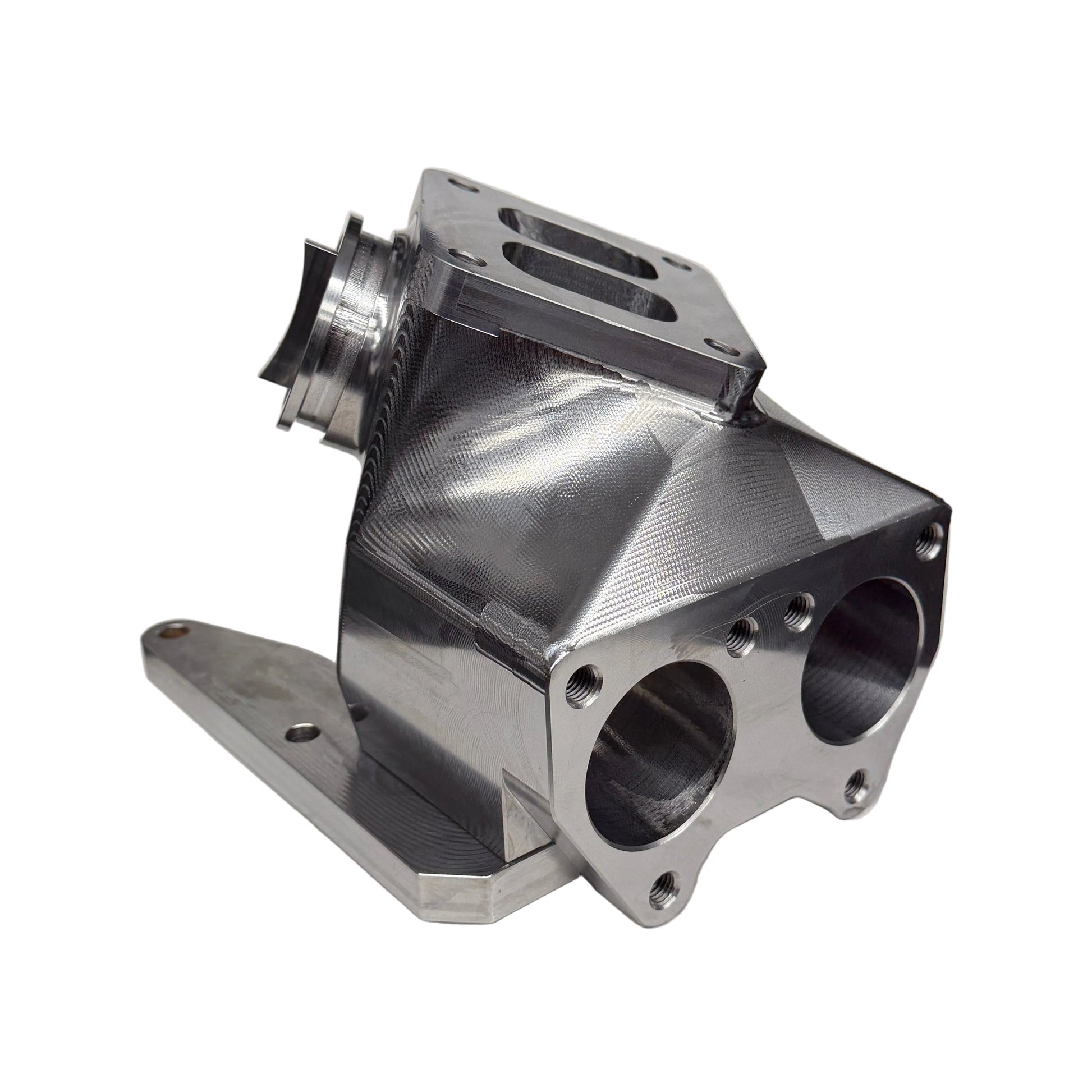

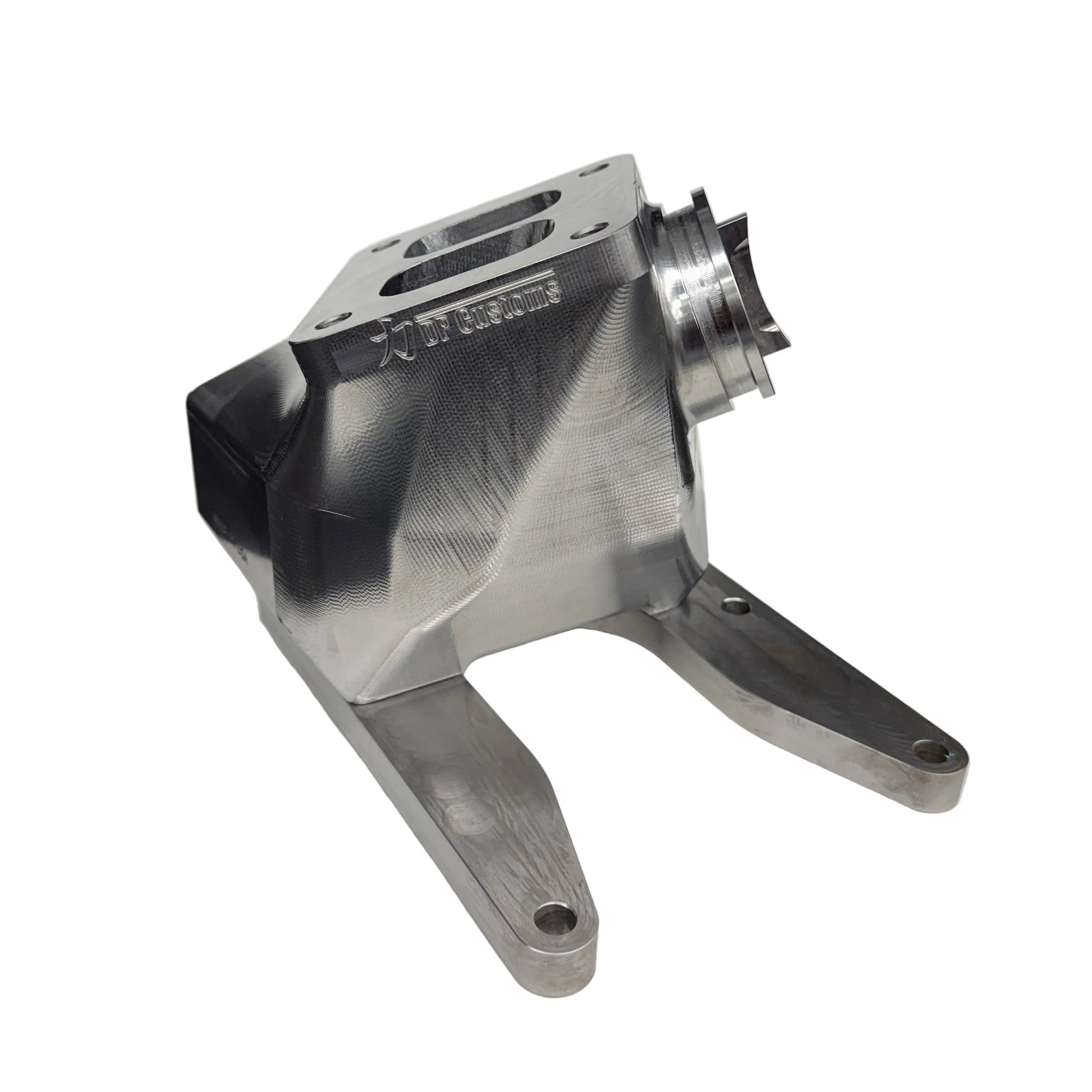

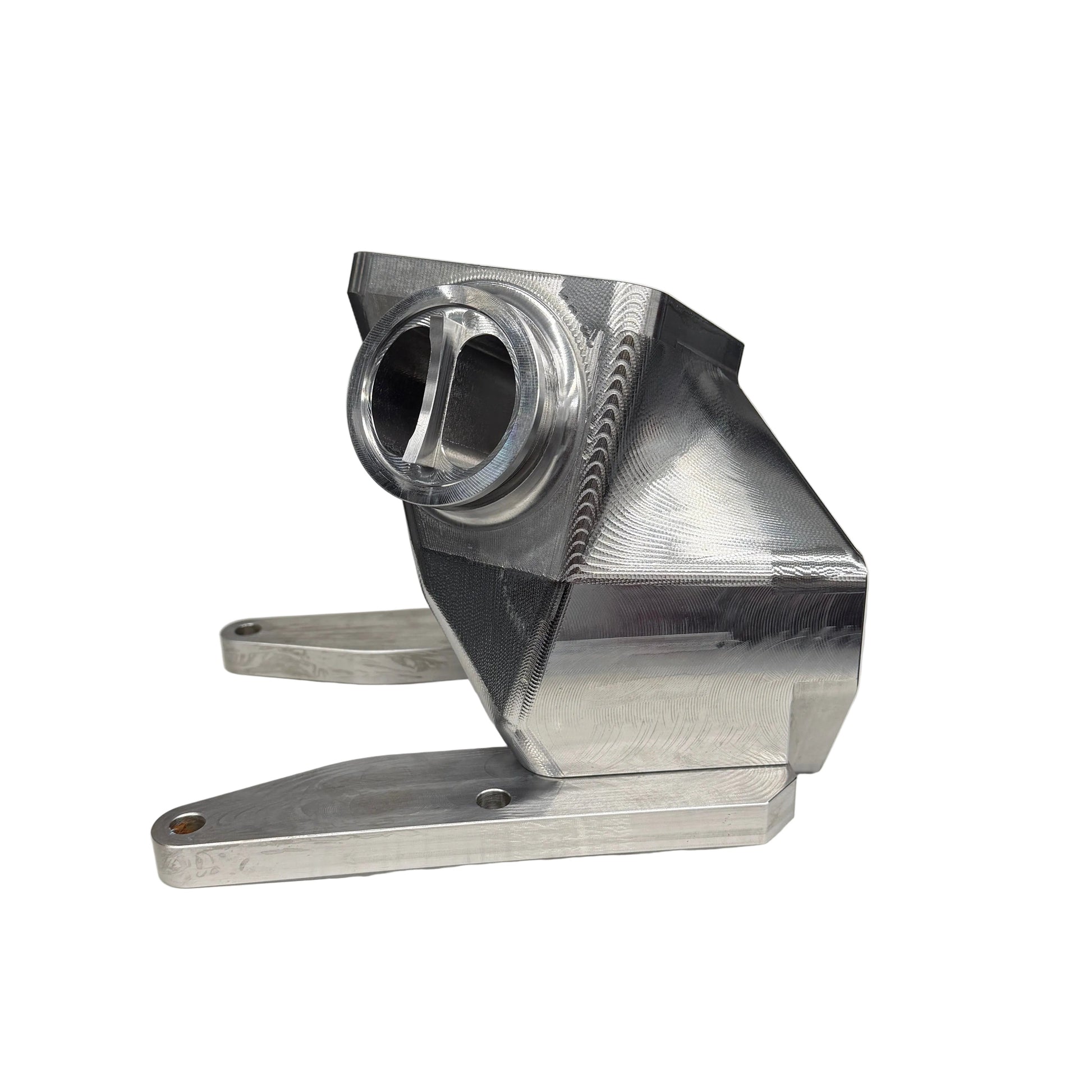

DP Customs L5P Duramax Twisted Billet T4 Wastegate Pedestal

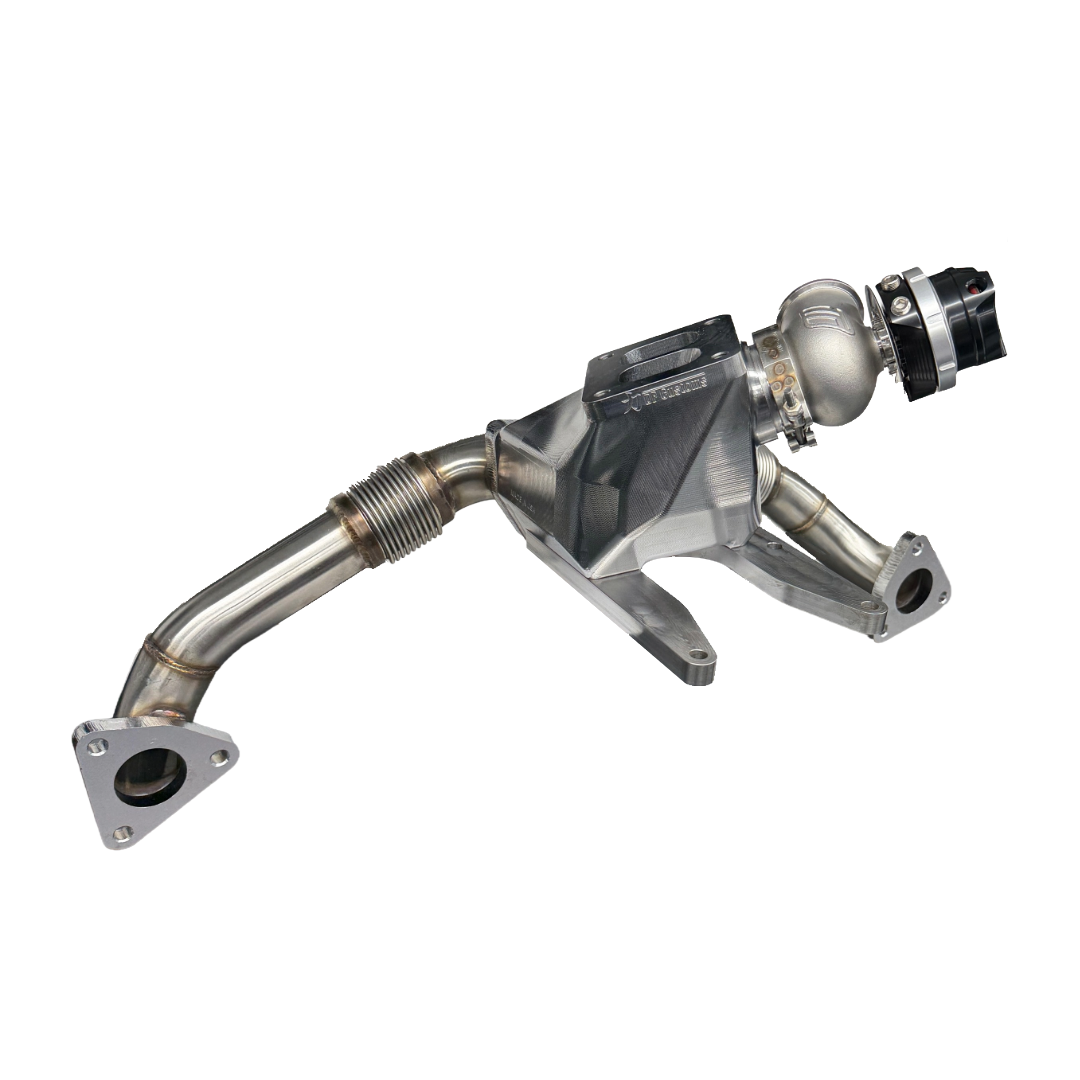

DP Customs L5P Duramax Twisted Billet T4 Wastegate Pedestal — From the same creators of the PROVEN 2001-2016 T4 & T6 Duramax Billet Pedestals, we now present you the WORLD'S FIRST L5P Duramax Billet T4 Twisted Wastegate Provisioned Pedestal. Don't be fooled by knockoff competitors, our Pedestals have been a proven product for the Duramax industry for years.

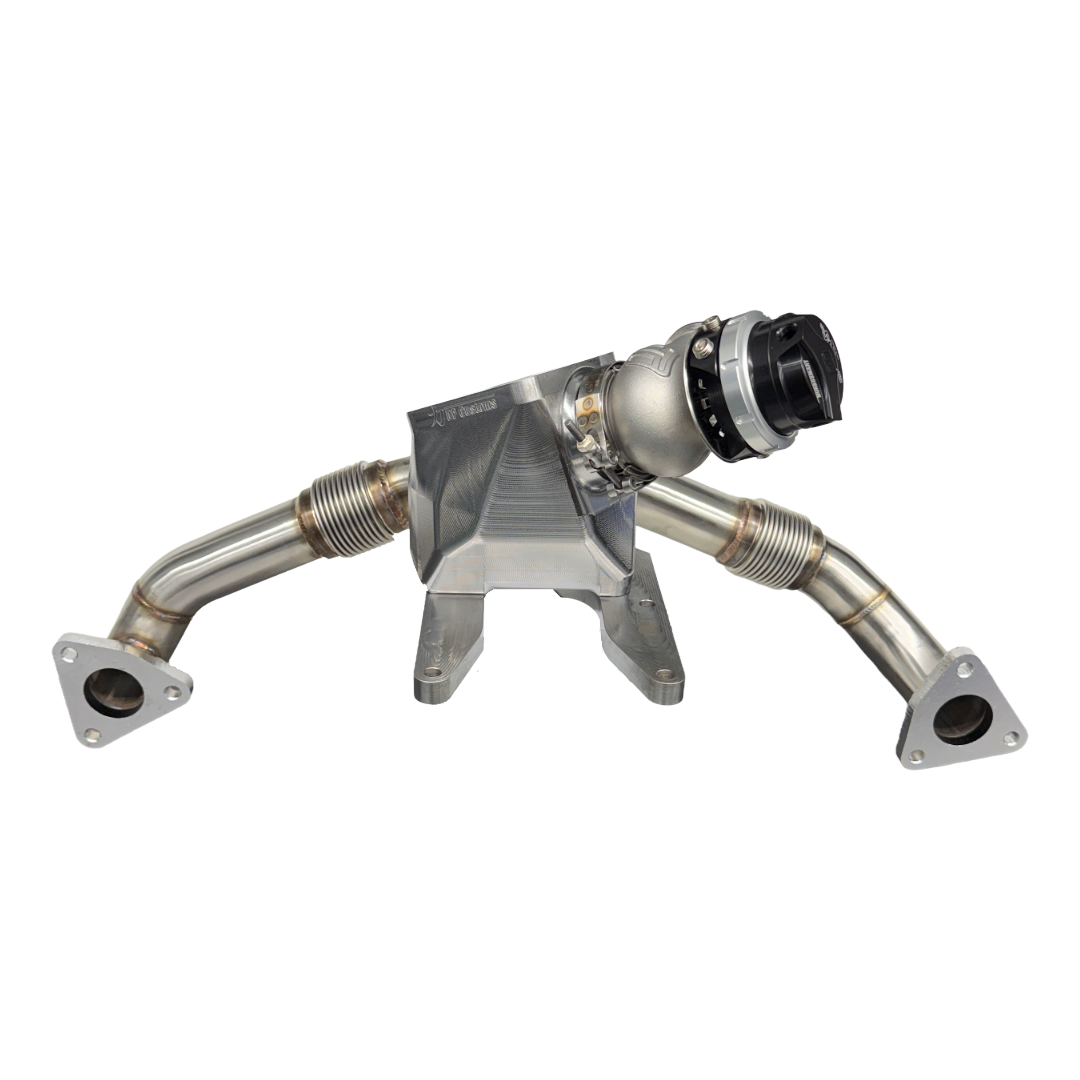

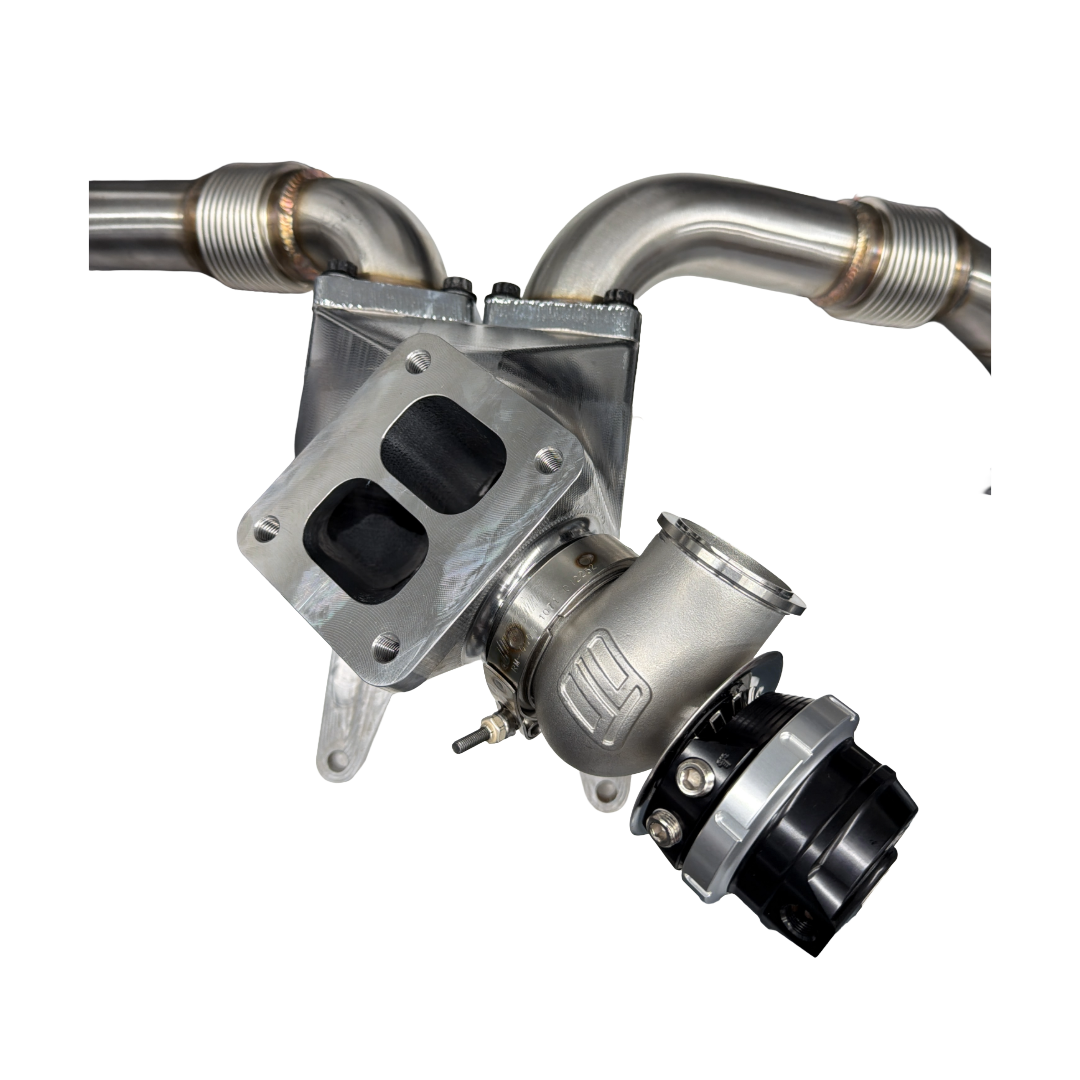

After months of engineering, we came up with a pedestal that fixed every problem seen with competitors' cast or fabricated pedestals. No more cracking or clearance issues and easy wastegate plumbing to name a few! Turbosmart's Hypergate 45MM Wastegate will clear the fuel rail and put the discharge opening in a perfect spot for dumping into the atmosphere through the hood or into your exhaust through the downpipe. If you do not run a wastegate, simply cap the provision off (caps sold separately) and enjoy a QUALITY Twisted Billet T4 Pedestal.

Features

• MADE IN THE USA
• Lifetime Warranty
• 5 Axis Billet Machined
• Heavy Duty Exhaust Channel Walls
• 45mm Hypergate Wastegate Provision Flange
• 3/4” T4 Flange
• -12AN turbo oil drain clearance
• M10x1.5 UpPipe & Turbo Mounting Thread

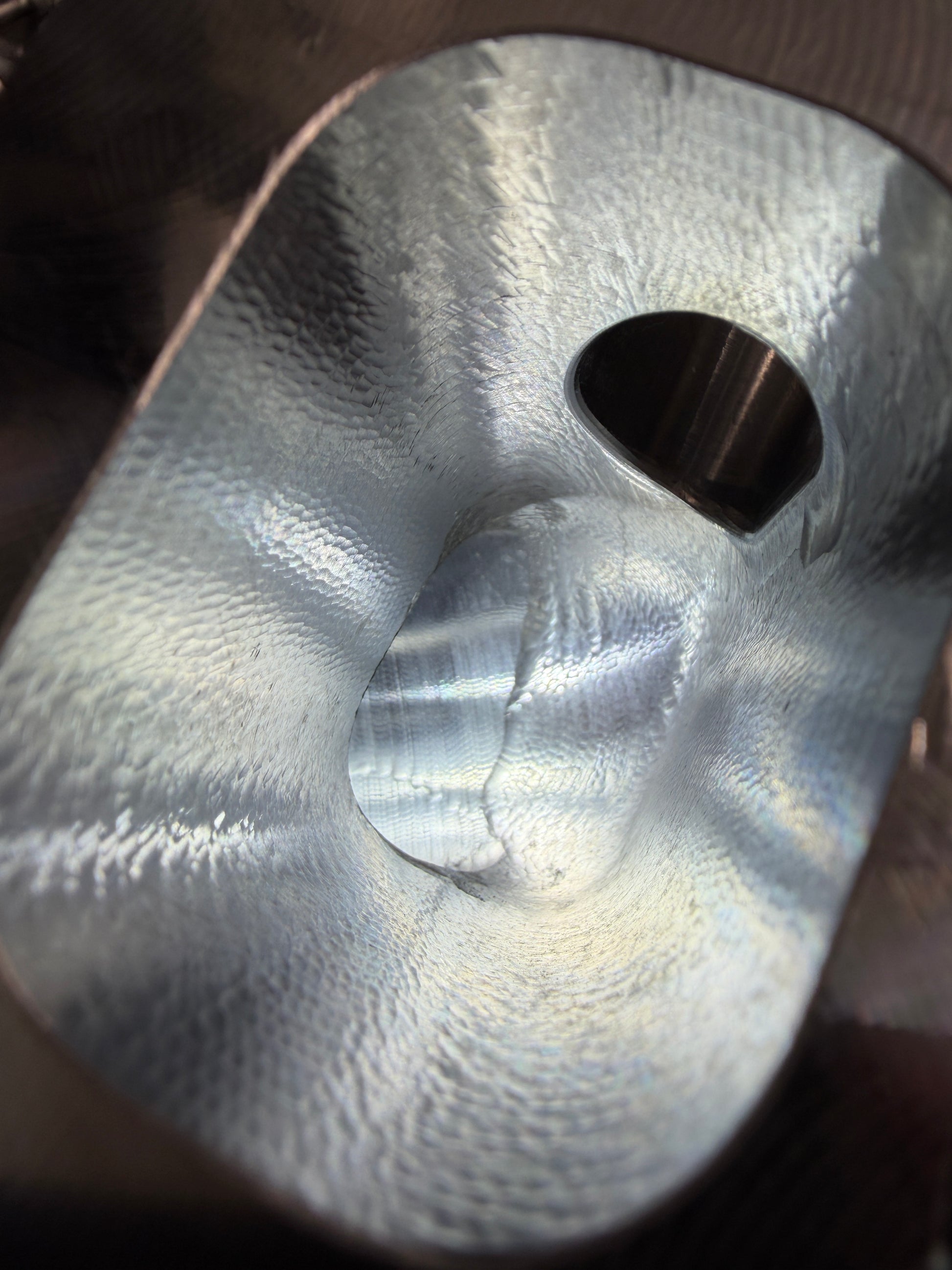

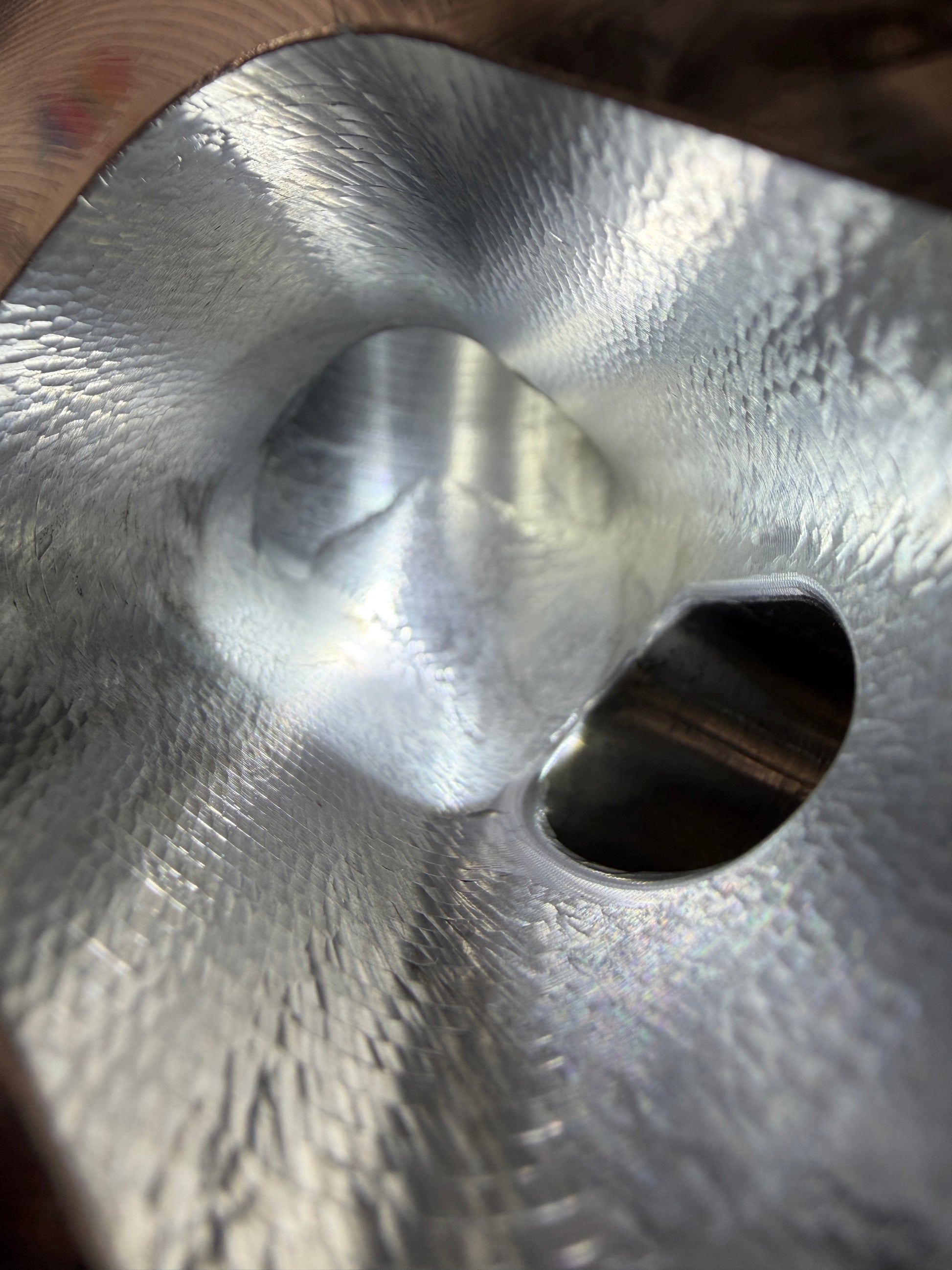

• High Flowing Internal Design

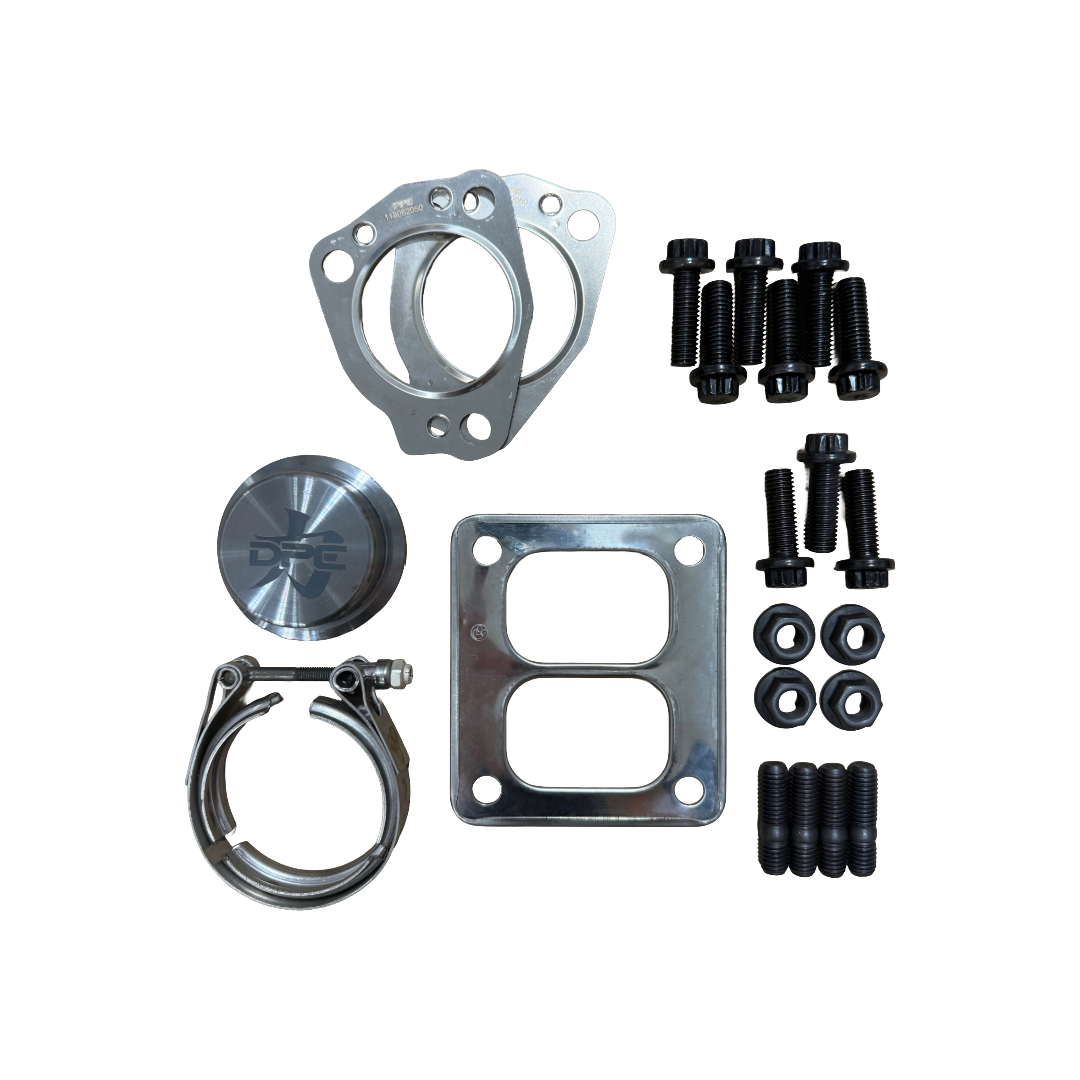

Install Kit

All gaskets/hardware needed to install the DP Customs Billet T4 Wastegate Pedestal. This kit also includes a billet wastegate provision plug if you are not using a wastegate.

• Borg Warner T4 Gasket
• M10x1.5 Studs/Nuts
• Turbosmart 44/45mm Clamp
• PPE UpPipe Bolt/Gasket Set
• Pedestal/Block Bolts

Fitment

2017-2026 L5P Duramax Blocks

Wastegate Fitment

Turbosmart Hypergate 44/45mm Wastegate

*USE OF PEDESTAL ON EXISTING TWISTED S400 KITS MAY REQUIRE MODIFICATION*

*TACK WELD OR STAKE BASE ALLEN BOLTS TO PREVENT FROM BACKING OUT*

WILL NOT SHIP TO THE STATE OF CALIFORNIA

*This product is intended for race/offroad use only, use of vehicle with product installed on public road/highway is STRICTLY FORBIDDEN. DP Customs is not liable if product is used in noncompliant manner*
