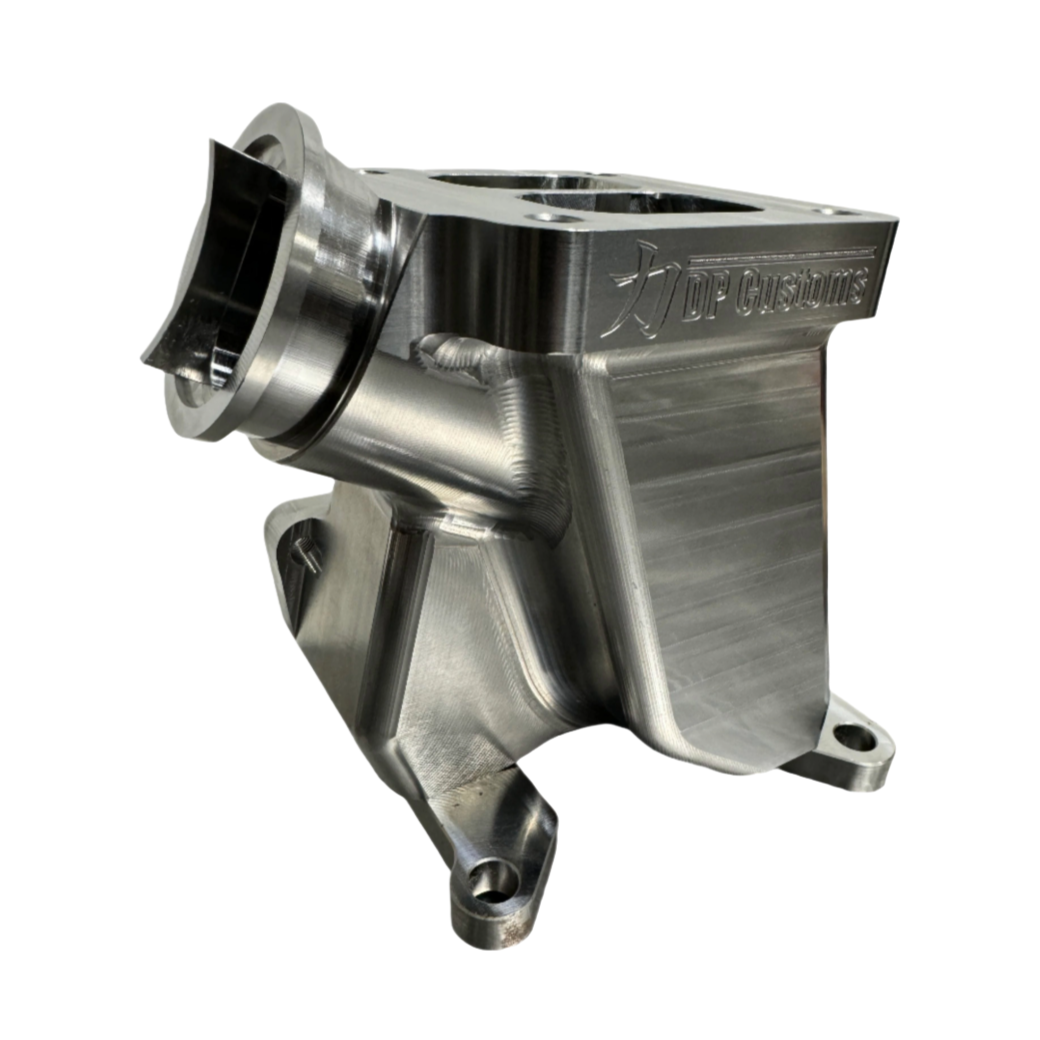

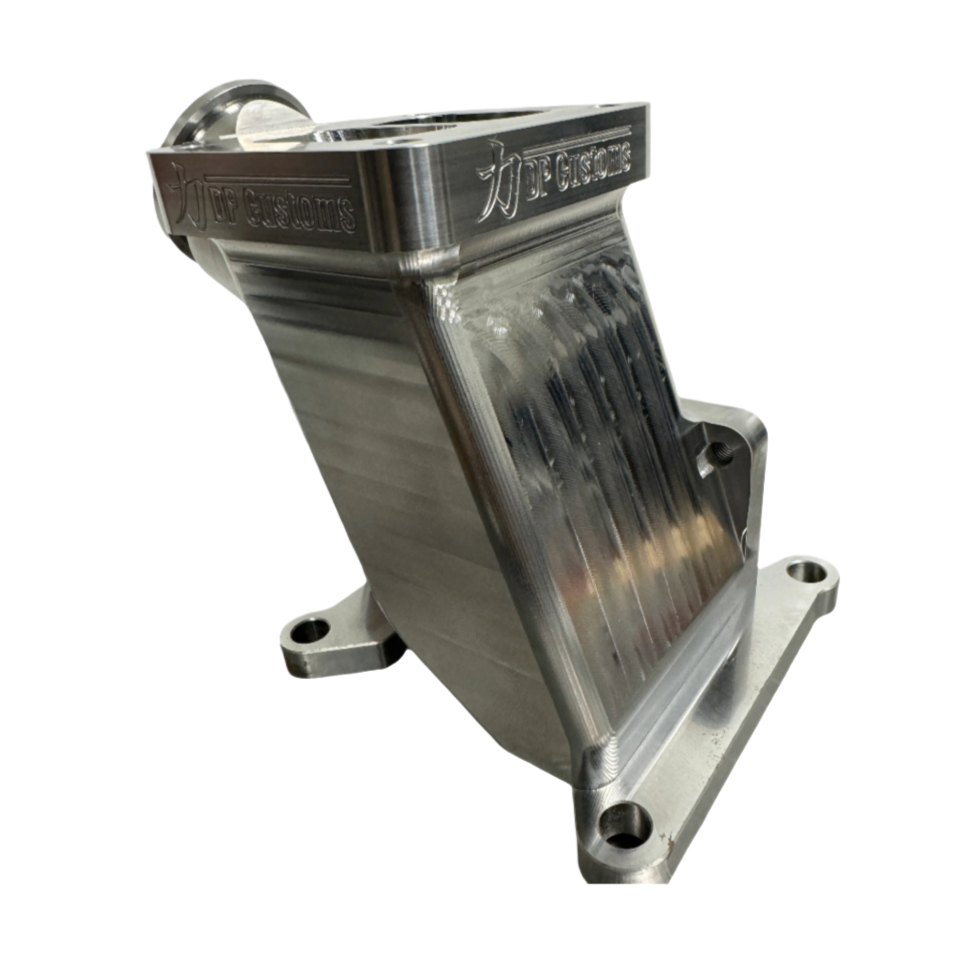

DP Customs Duramax Billet T4 Wastegate Pedestal

Introducing the WORLDS FIRST Duramax Billet T4 Wastegate Provisioned Pedestal by DP Customs. After months of engineering, we came up with a pedestal that fixed every problem seen with competitors casted or fabricated pedestals. No more cracking or clearance issues and easy wastegate plumbing to name a few! Turbosmart's Hypergate 45MM Wastegate will clear the fuel rail (if applicable fuel pressure sensor) and put the discharge opening in a perfect spot for dumping into the atmosphere through the hood or into your exhaust through the downpipe. If you do not run a wastegate, simply cap the provision off (caps sold separately) and enjoy a QUALITY Billet T4 Pedestal. With an easily removable base, this pedestal can also be adapted to use on L5P Duramax blocks. (sold separately)

Features:

• MADE IN THE USA
• Lifetime Warranty
• 5 Axis Billet Machined
• Removable and adaptable base for fitment and use with the L5P Duramax block (sold separately)
• 6.75” Height
• 1/2” Thick Mounting Base
• Heavy Duty Exhaust Channel Walls
• 45mm Hypergate Wastegate Provision Flange
• 3/4” T4 Flange
• -12AN turbo oil drain clearance
• M10x1.5 Thread

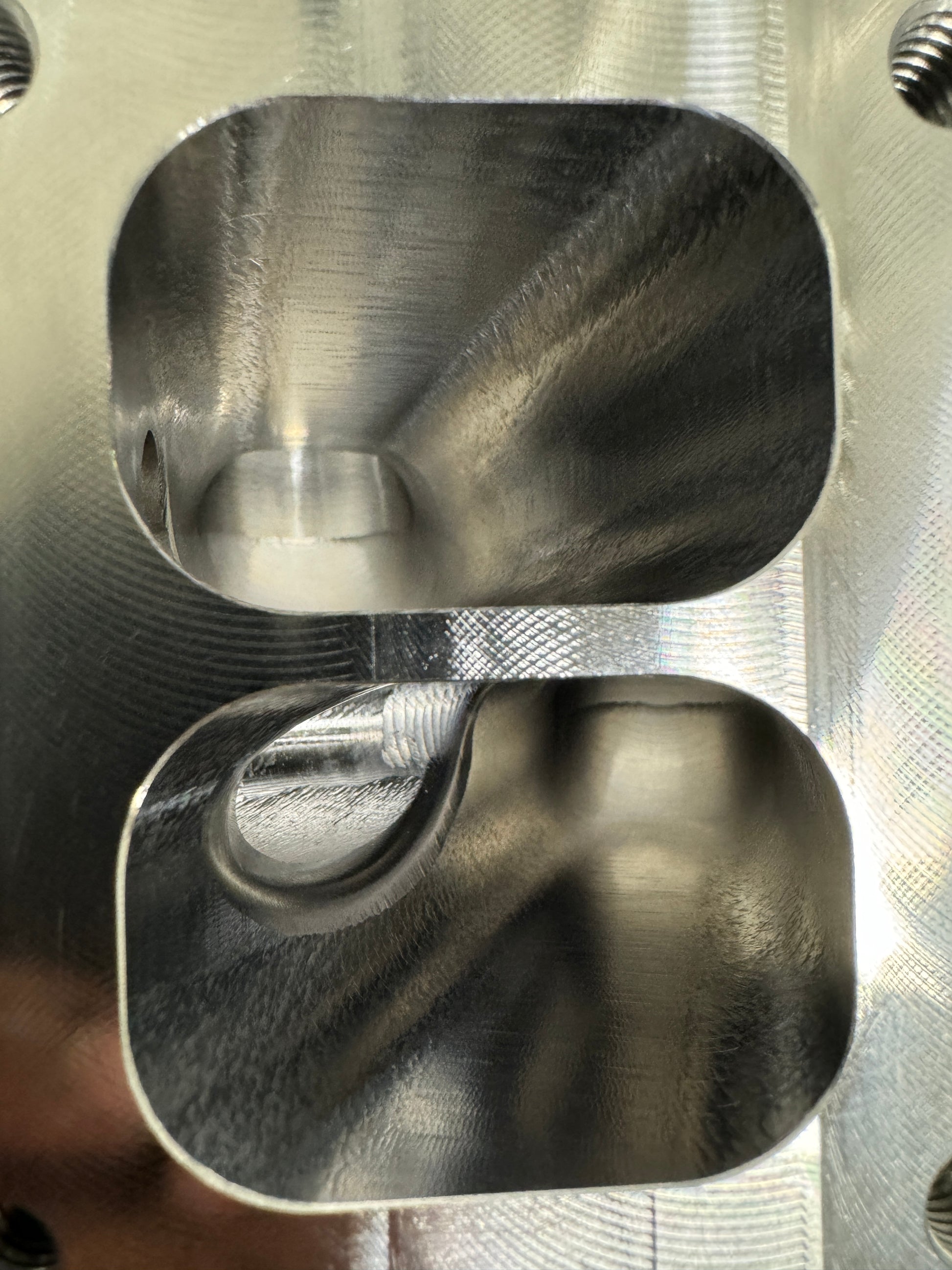

• High Flowing Internal Design
• LB7 Intake Runner Clearance

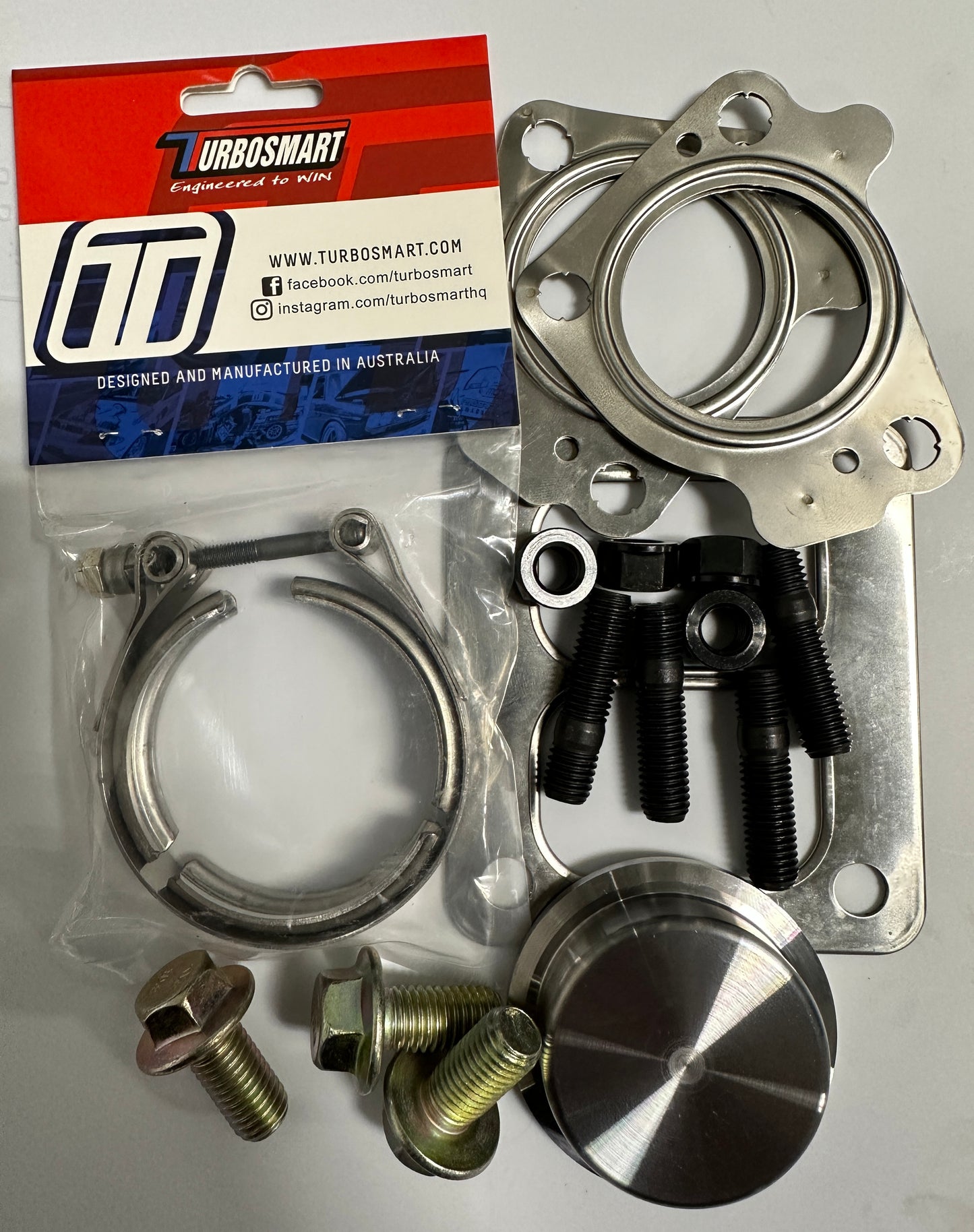

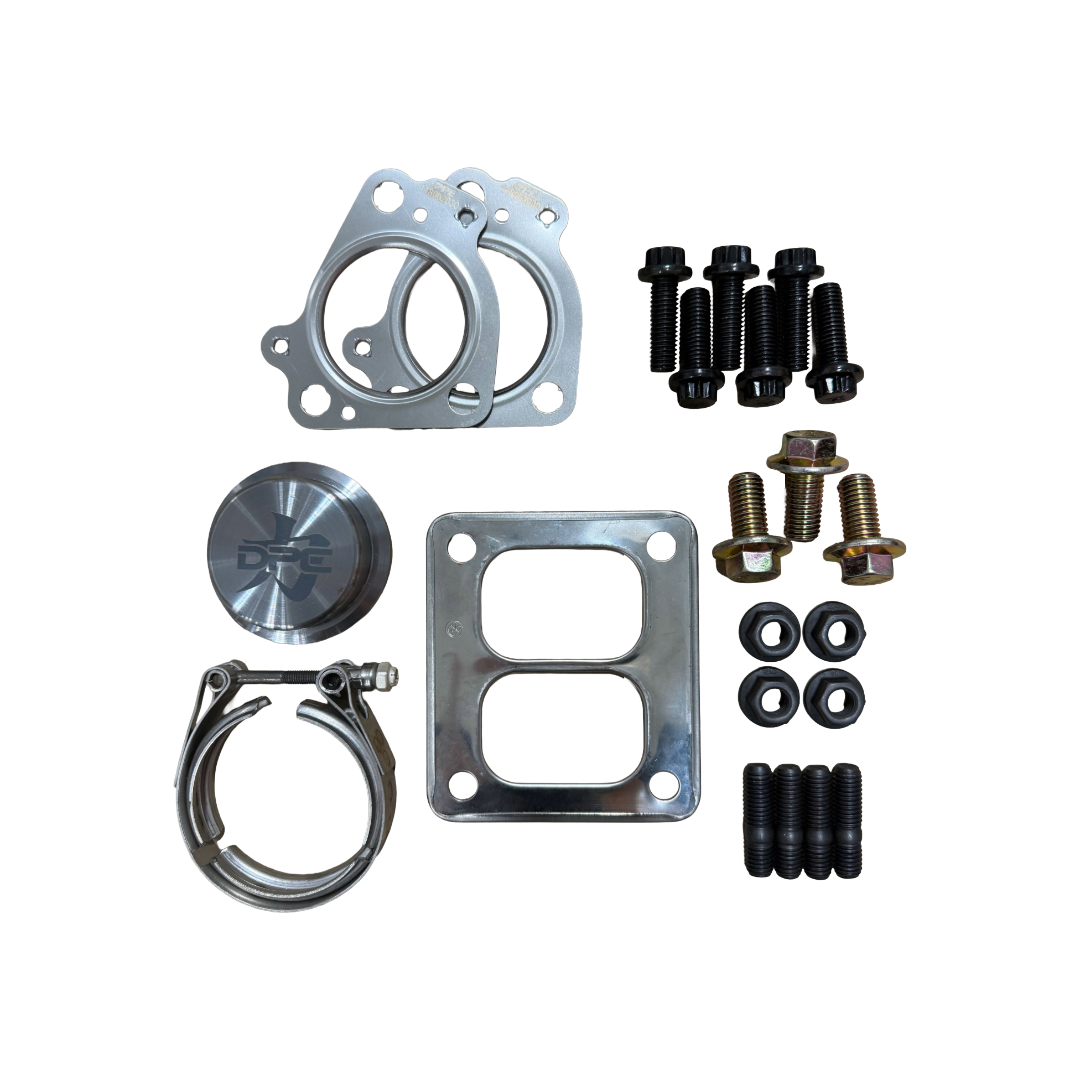

Install Kit:

All gaskets/hardware needed to install the DP Customs Billet T4 Wastegate Pedestal. This kit also includes a billet wastegate provision plug if you are not using a wastegate.

• Borg Warner T4 Gasket
• M10x1.5 Studs/Nuts
• Turbosmart 44/45mm Clamp
• UpPipe Gaskets
• Pedestal/Block Bolts

Fitment:

2001-2026 LB7 LLY LBZ LMM LML (L5P Duramax fitment w/ separate base & uppipe modification)

Wastegate Fitment:
Turbosmart Hypergate 44/45mm Wastegate

Records:

DPC LB7 Shop Truck 6350#

5.86@126.76   Approx. 2000hp

TACK WELD OR STAKE BASE ALLEN BOLTS TO PREVENT FROM BACKING OUT

WILL NOT SHIP TO THE STATE OF CALIFORNIA

*This product is intended for race/offroad use only, use of vehicle with product installed on public road/highway is STRICTLY FORBIDDEN. DP Customs is not liable if product is used in non compliant manner*
